Copeland 943-0086-00 Module

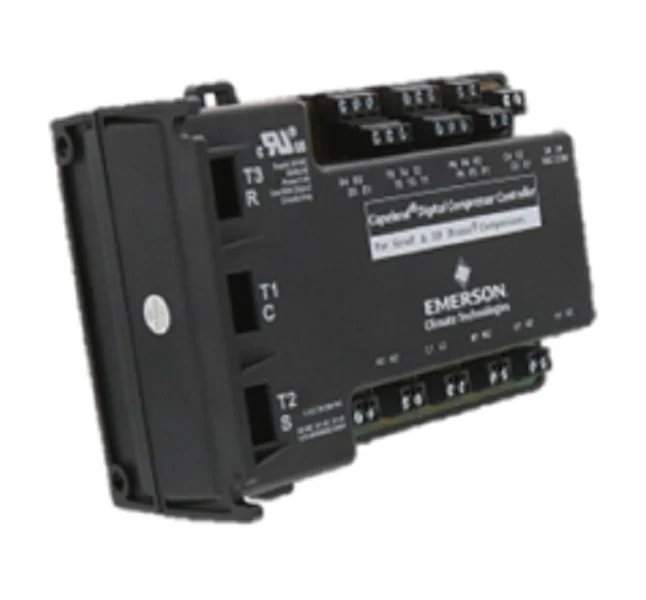

As a field technician, you know that maintaining precise capacity control in refrigeration systems is non-negotiable. The Copeland 943-0086-00 Module is the critical electronic interface engineered for Copeland Scroll Digital and Discus Digital compressors. This Digital Compressor Module (IDCM) effectively manages the unloader solenoid through an on/off cycling pattern, matching compressor output to the demand signal from the primary system controller. Designed to handle a input range of 19-28 VAC, it ensures stable electronic modulation even under varying load demands and harsh mechanical room environments. By integrating this HVAC control module, you gain real-time diagnostic monitoring through a series of red ALERT LED flash codes, which significantly reduce troubleshooting time by identifying faults like discharge thermistor failure or demand signal loss. The compact, low-profile assembly fits easily into existing enclosures, making it a reliable choice for both new installations and retrofits in commercial refrigeration applications.
Key Benefits- Precise Capacity Modulation: Cycles the unloader solenoid to match system cooling demand, optimizing energy consumption and maintaining tighter temperature tolerances.
- Enhanced Compressor Protection: Monitors discharge temperature via thermistor and shuts down the system if limits are exceeded, preventing catastrophic mechanical failure.
- Advanced Diagnostics: Features ALERT LED flash codes to provide instant visual feedback on system status, minimizing "No Defect" part replacements.
- Environmental Resilience: Operationally stable across a wide temperature range from -40°C to 70°C and humidity levels up to 95%.
- System Consistency: Includes a built-in anti-short cycle timer and filtered suction pressure signaling to prevent rapid cycling and stabilize system pressure.
What compressors are compatible with the 943-0086-00?
This module is specifically designed for Copeland Scroll Digital and Discus Digital compressors (3D, 4D, and 6D models) used in refrigeration and high-tonnage air conditioning systems.
How do I troubleshoot a flashing red LED on this module?
The red ALERT LED uses specific flash counts to indicate faults. For example, 5 flashes signal a demand signal loss, while 6 flashes indicate a discharge thermistor fault. Always refer to the service panel label for the full code list.
What is the required input signal for modulation?
The controller typically responds to an analog signal from the OEM system controller. It requires the demand signal to be above 1.44 VDC for the compressor to start and will fault if the signal drops below 0.5 VDC.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Copeland 943-0086-00 Module
As a field technician, you know that maintaining precise capacity control in refrigeration systems is non-negotiable. The Copeland 943-0086-00 Module is the critical electronic interface engineered for Copeland Scroll Digital and Discus Digital compressors. This Digital Compressor Module (IDCM) effectively manages the unloader solenoid through an on/off cycling pattern, matching compressor output to the demand signal from the primary system controller. Designed to handle a input range of 19-28 VAC, it ensures stable electronic modulation even under varying load demands and harsh mechanical room environments. By integrating this HVAC control module, you gain real-time diagnostic monitoring through a series of red ALERT LED flash codes, which significantly reduce troubleshooting time by identifying faults like discharge thermistor failure or demand signal loss. The compact, low-profile assembly fits easily into existing enclosures, making it a reliable choice for both new installations and retrofits in commercial refrigeration applications.
Key Benefits- Precise Capacity Modulation: Cycles the unloader solenoid to match system cooling demand, optimizing energy consumption and maintaining tighter temperature tolerances.
- Enhanced Compressor Protection: Monitors discharge temperature via thermistor and shuts down the system if limits are exceeded, preventing catastrophic mechanical failure.
- Advanced Diagnostics: Features ALERT LED flash codes to provide instant visual feedback on system status, minimizing "No Defect" part replacements.
- Environmental Resilience: Operationally stable across a wide temperature range from -40°C to 70°C and humidity levels up to 95%.
- System Consistency: Includes a built-in anti-short cycle timer and filtered suction pressure signaling to prevent rapid cycling and stabilize system pressure.
What compressors are compatible with the 943-0086-00?
This module is specifically designed for Copeland Scroll Digital and Discus Digital compressors (3D, 4D, and 6D models) used in refrigeration and high-tonnage air conditioning systems.
How do I troubleshoot a flashing red LED on this module?
The red ALERT LED uses specific flash counts to indicate faults. For example, 5 flashes signal a demand signal loss, while 6 flashes indicate a discharge thermistor fault. Always refer to the service panel label for the full code list.
What is the required input signal for modulation?
The controller typically responds to an analog signal from the OEM system controller. It requires the demand signal to be above 1.44 VDC for the compressor to start and will fault if the signal drops below 0.5 VDC.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
