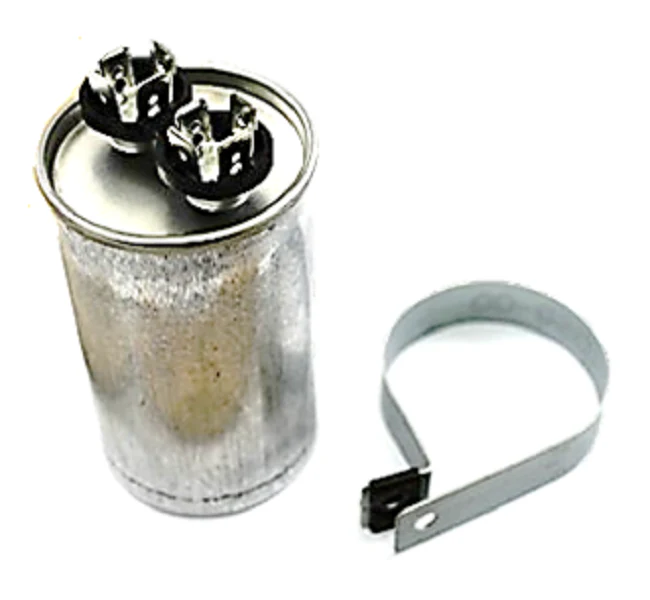

Copeland 914-0037-09 Run Capacitor
The Copeland 914-0037-09 is a high-performance 25 MFD 370V round run capacitor engineered for demanding HVACR applications. As an OEM replacement capacitor, it is optimized for Copeland compressor motor stability and consistent phase shift, ensuring your equipment maintains peak energy efficiency. This run capacitor for air conditioner and refrigeration systems features an oil-filled design that assists in heat dissipation, a critical factor for extending the operational life of single-phase motors in high-ambient environments. With 25 microfarad capacitance and a 370Vac rating, this component is a drop-in motor run capacitor solution that meets UL 810 safety standards and EIA-456-A requirements. Field technicians rely on its round metal case and 1/4-inch quick-disconnect terminals for fast, secure installations during Routine maintenance or emergency repairs in residential and commercial HVAC units.
Key Benefits for Technicians- Optimized Motor Torque: Maintains proper winding current for motor start-up and continuous duty.
- OEM Reliability: Direct 914-0037-09 technical specification match for Emerson/Copeland systems.
- Heat Resistance: Robust metalized polypropylene film construction designed for fluctuating HVAC loads.
- Broad Compatibility: Suitable for AC fan motors, blowers, and compressor circuits requiring a 25 uF 370V rating.
- Safety Compliance: Features a pressure-sensitive interrupter (PSI) to prevent case rupture under fault conditions.
Can I use a 440V capacitor to replace this 370V unit?
Yes, a higher voltage rating (like 440V) is acceptable as it indicates the maximum dielectric strength, but the capacitance must remain exactly 25 MFD for the motor to operate correctly.
What are the physical dimensions of the 914-0037-09?
This round run capacitor typically measures approximately 1.75 to 2.0 inches in diameter, though you should always verify the mounting strap clearance on older HVAC units.
How do I know if my compressor run capacitor has failed?
Common indicators include a bulging top cap, leaking oil, or a "humming" motor that fails to start. Testing with a multimeter should show a capacitance value within +/- 6% of the 25 microfarad rating.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
