Copeland 914-0036-09 Start Capacitor

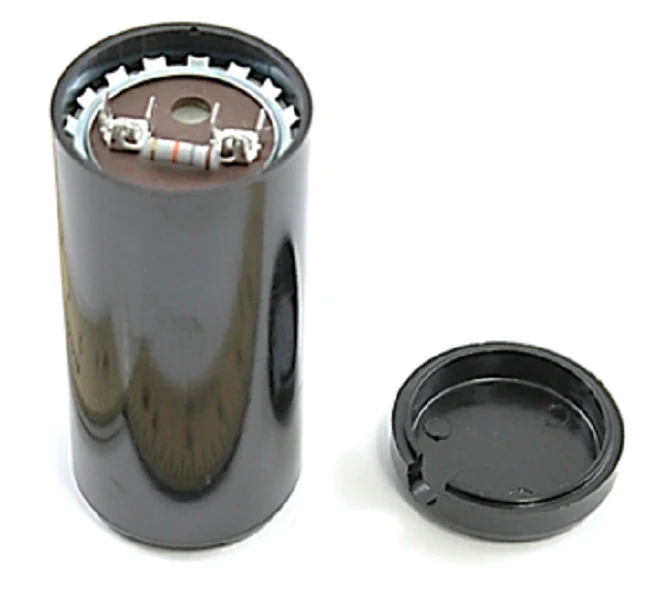

The Copeland 914-0036-09 Start Capacitor is a high-torque electrical component engineered for single-phase HVACR compressors and refrigeration systems. Rated for 243-292 MFD (microfarads) at 165VAC, this motor start capacitor provides the necessary phase shift to initiate rotation under high head pressure or heavy starting loads. Built with a durable round phenolic or thermoplastic housing, it features standard 1/4-inch quick-connect terminals to ensure efficient integration into commercial refrigeration racks, condensing units, and air conditioning equipment. This OEM Copeland capacitor is designed to meet rigorous EIA Standard RS-463 requirements, delivering stable performance in demanding industrial environments. As a veteran technician knows, maintaining the correct capacitance range is critical for protecting motor windings from overheating during the startup cycle and ensuring long-term compressor reliability.
Key Benefits for Technicians:- Universal Compatibility: Optimized for Copeland compressors and various 165V single-phase motor applications.
- High Starting Torque: Provides a massive reactive power boost (243-292 Microfarad) to overcome mechanical resistance.
- Quick Installation: Standardized round start capacitor form factor with double-spade terminals for fast field replacement.
- Thermal Stability: Operating temperature range from -40°C to 65°C, suitable for rooftop units and hot mechanical rooms.
- Integrated Bleeder Resistor Support: Designed to facilitate safe discharge between cycles (check specific unit wiring for resistor requirements).
What happens if the capacitance is outside the 243-292 MFD range?
Using a capacitor with lower MFD will result in insufficient torque, potentially causing the compressor to stall or trip the internal overload. Higher MFD can lead to excessive winding current and premature motor failure.
Is the 165V rating compatible with 115V or 230V systems?
This 165VAC capacitor is specifically rated for the start circuit voltage seen in many 115V or tiered 230V compressor configurations. Always verify the voltage across the start winding before selecting a replacement.
How do I identify a failing Copeland 914-0036-09?
Common signs include a "humming" motor that fails to start, visible bulging/leaking of the capacitor case, or a reading outside the +/- 10% tolerance when tested with a capacitance meter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
