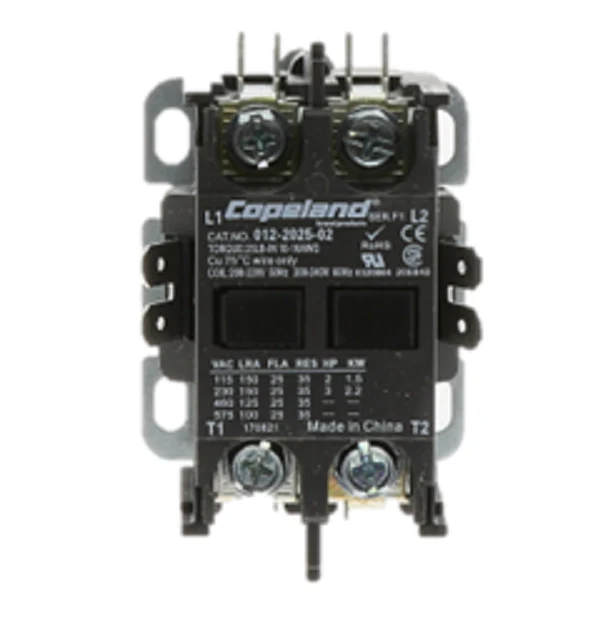

Copeland 912-2025-02 Contactor
The Copeland 912-2025-02 Contactor is a professional-grade 2-pole HVAC contactor engineered for demanding high-current applications. Rated for 25 Amp Full Load Amps (FLA) and a 35 Amp resistive load, this component is a standard replacement for residential and light commercial 208/230V condensing units and electric heat packages. Built to withstand frequent cycling, the 912-2025-02 features heavy-duty silver cadmium oxide contacts to prevent welding and pitting, ensuring reliable compressor motor control under high-torque startup conditions.
As a veteran tech knows, full isolation is critical in 230V circuits; this 2-pole power contactor breaks both legs of the incoming power to ensure the load is completely de-energized during the off-cycle. This prevents "half-live" scenarios common with single-pole shunted alternatives, improving safety during field service. The compact frame matches standard mounting footprints, making it a drop-in OEM replacement contactor for various Copeland and Emerson-based climate control systems. It is UL listed and CSA certified, meeting all North American safety codes for 50/60 Hz operations.
- Full Line Isolation: The 2-pole design breaks both hot legs, ensuring no voltage remains at the compressor or motor when the coil is de-energized.
- Universal Voltage Compatibility: Optimized for 208V to 240V AC control circuits, common in modern split-system air conditioners and heat pumps.
- Industrial Build Quality: High-grade 25A FLA rating provides a safety margin for inductive loads, reducing the risk of contact chatter or premature failure.
- Standardized Mounting: Designed with a universal baseplate for fast installation in existing electrical control boxes.
Common Questions
Can I use a 25A contactor to replace a 30A model?
No. Always match or exceed the Full Load Amperage (FLA) of the original component. Using a lower-rated contactor will lead to welded contacts and potential motor damage.
Does this contactor include a 24V or 240V coil?
This specific 912-2025-02 model is designed for 208/230V coil applications. Verify your control voltage at the thermostat or transformer before installation.
Is this compatible with 50Hz power systems?
Yes, this contactor is rated for both 50Hz and 60Hz frequencies, making it suitable for international and domestic technical specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
