Copeland 543-0033-01 Comfort Alert

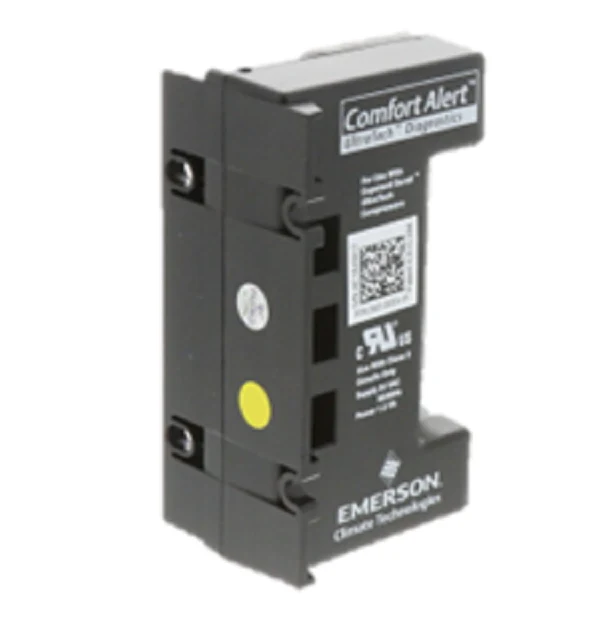

The Copeland 543-0033-01 Comfort Alert is a critical diagnostic module designed for Copeland Scroll compressors, providing sophisticated monitoring for both residential and commercial condensing units. Operating on a 24V AC power supply, this self-contained HVAC diagnostic module utilizes the compressor as a primary sensor, analyzing electrical and system data to pinpoint malfunctions without the need for external sensors. It features a high-visibility LED interface that displays specific Comfort Alert flash codes, enabling technicians to identify root causes such as short cycling, locked rotor, or open circuits quickly and accurately.
Engineered for seamless integration within the electrical box, the 543-0033-01 model supports two-stage control and is compatible with Class 2 circuits. By implementing real-time monitoring of voltage and current, it offers active compressor protection, triggering a lockout during harmful conditions to prevent mechanical failure. This module is an essential upgrade for any HVACR monitoring system, reducing diagnostic time and preventing unnecessary component replacements.
Key Benefits:- Provides real-time diagnostics to identify electrical and system-related faults using internal sensor logic.
- Features active compressor protection to shut down the unit during high-risk conditions like phase loss or low voltage.
- Compatible with 24V AC systems and optimized for Copeland Scroll Ultratech compressors.
- Reduces troubleshooting time via a standardized LED flash code indicator system.
- Implements an anti-short cycle timer to protect against rapid equipment cycling.
- How do I reset a lockout alert on the 543-0033-01? Manual alerts can be reset by cycling the 24V power to the module. Some alerts clear automatically once system parameters return to normal operating ranges.
- What does a solid yellow ALERT LED mean? A solid yellow light typically indicates that more than 2 amps are being conducted through the PROT terminal, suggesting a potential short in the contactor coil or incorrect wiring.
- Can this be used on three-phase compressors? Yes, this module is specifically designed to troubleshoot and protect three-phase Copeland Scroll units, monitoring for missing phases or reverse phase conditions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
