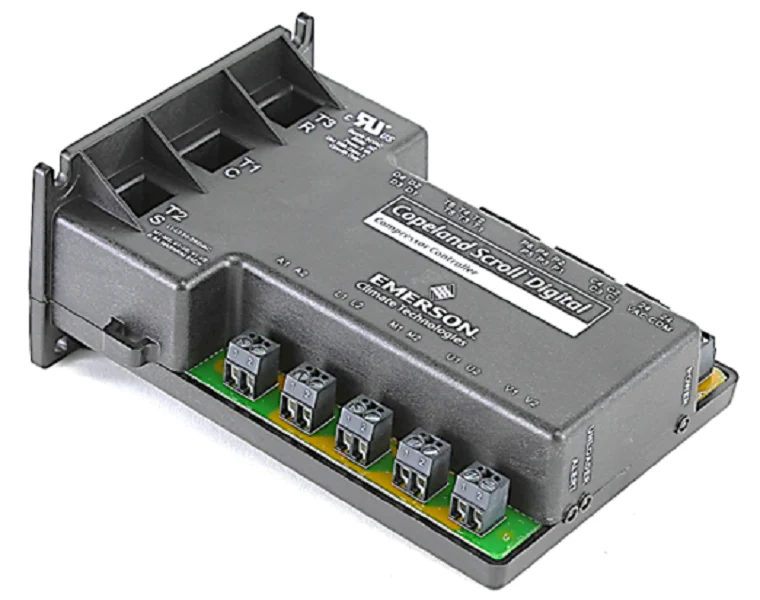

Copeland 543-0024-00 Controller
The Copeland 543-0024-00 Controller is a high-performance Digital Compressor Control module designed as the primary electronic interface for single and three-phase Copeland Scroll Digital compressors. Operating on a 24VAC supply, this device provides precise capacity modulation by cycling the unloader solenoid in response to a 1-5VDC analog demand signal from the system master. It features a critical 20-second duty cycle, managing loading and unloading patterns to maintain exact suction pressure and setpoint stability in refrigeration applications. Beyond simple modulation, this controller functions as a robust diagnostic tool, monitoring compressor current and discharge gas temperature via thermistor input to prevent thermal overload. The integrated anti-short cycle timer and 20s time delay protect the motor from frequent cycling, while visible onboard LED flash codes allow technicians to rapidly identify alert conditions like locked rotors or demand signal loss without complex external tools.
Key Benefits:- Precise Capacity Modulation: Interfaces with unloader solenoids to deliver 10% to 100% variable capacity based on system load.
- Advanced Motor Protection: Monitors for locked rotor conditions and includes an integrated 2-minute anti-short cycle delay.
- Thermal Safeguard: Automatically de-energizes the contactor if the discharge temperature exceeds 268°F to prevent permanent scroll damage.
- Streamlined Diagnostics: Seven distinct LED alert codes reduce troubleshooting time and eliminate unnecessary compressor replacements.
- Integrated Pressure Filtering: Smooths out suction pressure fluctuations to provide a stable analog output for the system controller.
How do you reset a Code 4 (Locked Rotor) alert?
A locked rotor lockout occurs after four consecutive failed start attempts and requires a manual power cycle of the 24VAC supply to reset the controller.
What happens if the discharge thermistor fails?
If the controller detects a thermistor fault (Flash Code 6), it instinctively limits the compressor capacity to 50% to prevent potential overheating while maintaining partial system operation.
Does this controller work with DC unloader solenoids?
No, the unloader and vapor injection solenoid outputs are triac-driven and compatible only with AC voltages up to 250VAC; they will not function with DC coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
