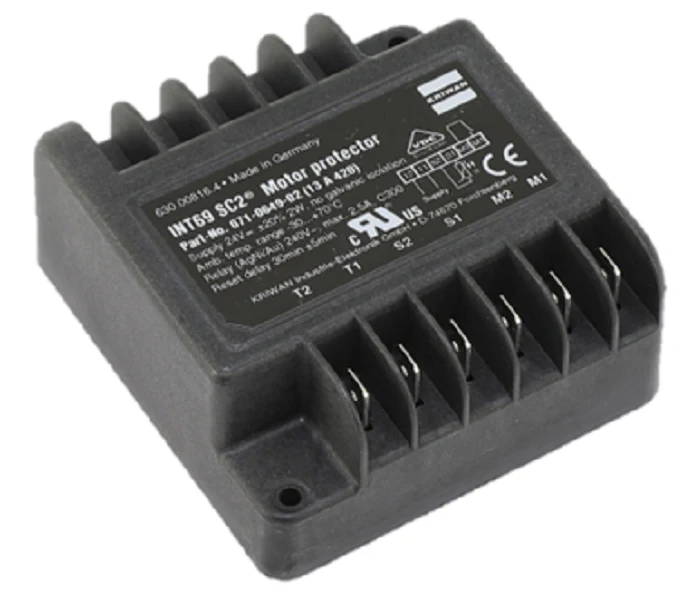

Copeland 071-0649-02 Module Protector
The Copeland 071-0649-02 Module Protector is a critical external protection component designed for heavy-duty HVAC and refrigeration compressor applications. Operating on 24 VDC, this module serves as a primary defense against electrical overloads and catastrophic winding failure. For technicians managing commercial refrigeration systems, this unit provides a precise 30-minute reset delay, effectively mitigating risks associated with short cycling and ensuring stable pressure equalization before compressor restart. With a robust 25-amp capacity, it is engineered to meet the high-torque demands of Copeland compressors. This external protection module integrates seamlessly into your control circuit, monitoring thermal and electrical parameters to prevent downtime. Using Emerson Electric OEM components ensures that the trip curves and response times align perfectly with original equipment specifications, maintaining the integrity of the timed reset overload protection circuit in demanding environments.
Key Benefits for Contractors
- System Longevity: Prevents motor burnout by interrupting the control circuit during short cycling or over-current events.
- OEM Compatibility: Authentic Emerson Electric part ensures drop-in replacement without modifying terminal configurations.
- Automatic Recovery: Features a fixed 30-minute automatic reset to allow for sufficient cooling and system stabilization.
- Versatile Application: Ideal for use in commercial refrigeration, walk-in coolers, and industrial HVAC chillers.
- Reliable Monitoring: Provides high-accuracy sensing for compressor protection in 24V DC control architectures.
Common Questions
What is the purpose of the 30-minute delay?
The 30-minute window prevents the compressor from hunting or rapid cycling, which is the leading cause of motor failure and oil migration issues in refrigeration systems.
Can this replace an internal protector?
This is an external protection module. While it provides supplemental protection, it should be installed according to the specific wiring diagram for compressors requiring 071-0649-02 modules.
How do I verify if the module has tripped?
If the compressor is not engaging despite a call for cooling, check for continuity through the protection circuit. If the module is in the 30-minute delay phase, it will remain open until the timer expires.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
