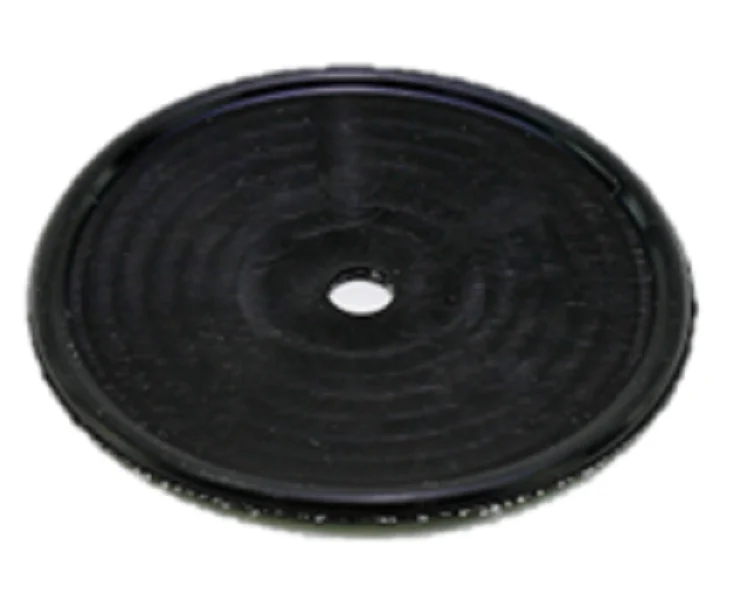

Conbraco Industries D-2419-00 Diaphragm
The Conbraco Industries D-2419-00 Diaphragm is a critical replacement component engineered specifically for 36 Series pressure reducing valves (PRV). As an OEM-spec flexible sealing membrane, this part is essential for maintaining accurate downstream pressure regulation in both residential and commercial water distribution systems. The D-2419-00 is constructed from high-grade nylon-reinforced neoprene or FDA-grade materials, providing the mechanical response necessary to modulate flow across the valve seat in response to fluctuating inlet pressures. This HVAC pressure regulator diaphragm ensures the systemic integrity of the PRV, preventing over-pressurization that can lead to pipe fatigue or fixture damage. For veteran service technicians, replacing a worn 36 Series repair kit component like this diaphragm is a standard procedure to restore factory-set performance (typically 50 PSI) and ensure consistent flow control. Proper alignment during installation is mandatory to maintain a leak-proof seal within the bell housing assembly.
Key Benefits- Specifically engineered for seamless compatibility with Conbraco 36 Series and Apollo PRV models.
- Durable reinforced elastomer construction offers superior resistance to pressure spikes and thermal cycling.
- Restores precise pressure modulation to protect downstream plumbing and HVAC equipment.
- Critical for maintaining automatic pressure equalization and preventing system vibration or "water hammer."
- OEM dimensions ensure a perfect fit within the pressure plate and bolt assembly for a simplified rebuild.
Which valve models use the D-2419-00 diaphragm?
This diaphragm is the standard replacement part for the Conbraco and Apollo 36 Series, including the 36-103, 36-203, and 36-303 models, and is often paired with the W-6462-06 cartridge.
What are the signs that this diaphragm needs replacement?
Technicians should look for inconsistent downstream pressure, "creeping" pressure beyond the set point, or visible water leakage from the vent hole in the bell housing, which indicates a ruptured membrane.
Is this part suitable for potable water systems?
Yes, when used in Lead-Free (LF) versions of the 36 Series, these components are designed to meet relevant standards for potable water applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
