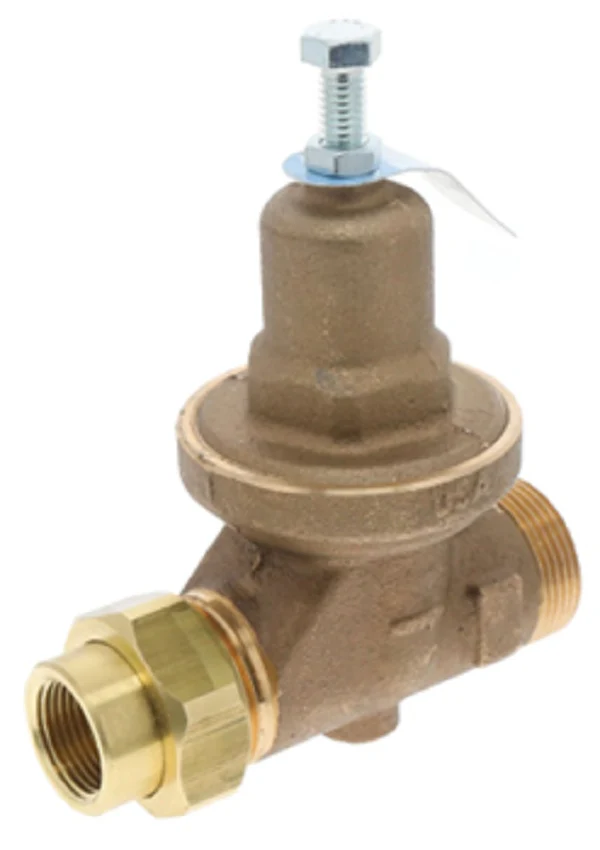

Conbraco Industries 36LF-104-02 Valve
For contractors managing residential or commercial domestic water systems, the Conbraco 36LF-104-02 (Apollo 36LF Series) is a professional-grade lead-free water pressure reducing valve engineered for precision and durability. This 3/4" direct acting PRV features a robust bronze body and bonnet, specifically designed to handle a low-pressure control range of 10-35 psi. The unit comes equipped with a single union FNPT inlet and a standard FNPT outlet, facilitating rapid installation and simplified maintenance in tight mechanical spaces. With a high-capacity stainless steel strainer and a balanced piston design, the 36LF-104-02 ensures consistent performance even during fluctuating supply pressures. This ASSE 1003 listed regulator is built with EPDM seat discs and a nitrile O-ring to withstand temperatures up to 180°F. Whether you are protecting downstream fixtures from excessive street pressure or optimizing a potable water distribution system, this Apollo pressure regulator delivers the reliability required for code-compliant HVACR and plumbing projects.
Key Benefits- Lead-Free Construction: Certified to NSF/ANSI 61 and 372 standards, ensuring suitability for all potable water applications.
- Debris Protection: Features an integral, high-capacity stainless steel strainer to protect internal components and downstream equipment.
- Low-Pressure Precision: Specifically calibrated for a 10-35 psi range, ideal for specialized residential or light commercial zones requiring reduced head pressure.
- In-Line Serviceability: Designed with a replaceable seat assembly and cartridge, allowing for full maintenance without removing the valve body from the piping.
- Thermal Expansion Bypass: Includes an internal bypass feature to prevent excessive pressure buildup from thermal expansion within the system.
How do I adjust the outlet pressure on this PRV?
To adjust the setting, loosen the lock nut on the spring cage and turn the adjustment screw. Turning the screw clockwise increases the downstream pressure, while turning it counter-clockwise decreases it. Always use a pressure gauge to verify the final setting.
Can the Conbraco 36LF-104-02 be installed in any orientation?
Yes, this regulator is designed for versatile installation and can be mounted in either horizontal or vertical orientations, provided the flow arrow on the bronze body points in the direction of water flow.
Is this valve suitable for high-temperature hot water loops?
The valve is rated for a maximum temperature of 180°F (82°C), making it compatible with most standard domestic hot water systems and hydronic applications within that thermal range.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
