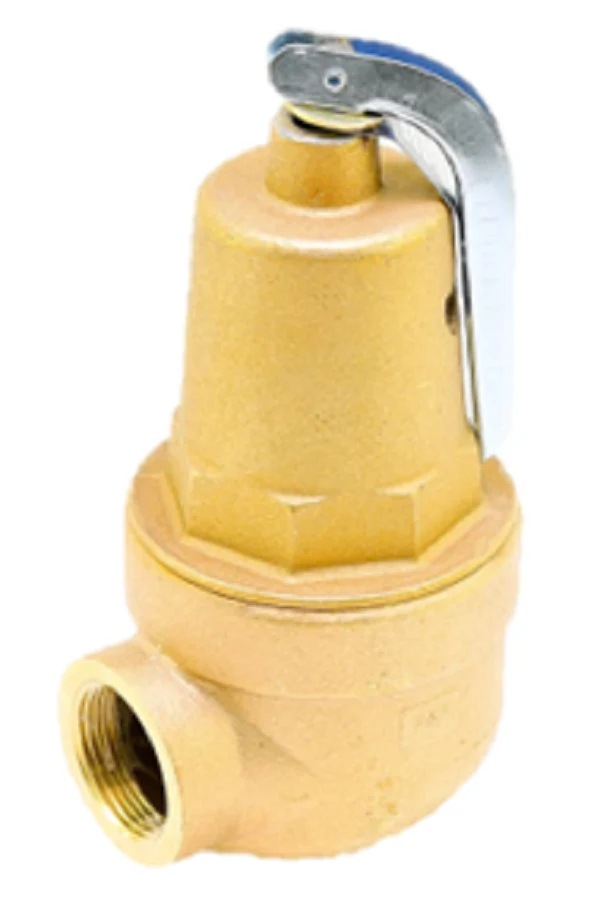

Conbraco Industries 10-606-12 Valve
The Conbraco Industries 10-606-12 Valve is a rugged, high-performance ASME Section IV hot water relief valve specifically engineered for commercial and industrial hydronic systems. This 1 1/4" FNPT safety relief valve features a robust ASTM B584 bronze body and a corrosion-resistant plated alloy steel spring, ensuring long-term field reliability in high-demand environments. Factory set at 60 PSI, it delivers an impressive 3,918,000 BTU/hr capacity, making it a critical component for protecting large-scale heating boilers and hot water systems from overpressure conditions.
Designed with a diaphragm-isolated spring chamber, this valve prevents process media from contacting the internal spring, mitigating the risk of sediment buildup or scale that can lead to mechanical failure. The silicone seat provides a tight seal and reliable pop-action performance at temperatures up to 250°F. For contractors and HVACR technicians, the Apollo 10-600 series represents the standard for National Board capacity certified protection, offering a standard outlet configuration for straightforward integration into existing piping manifolds.
Key Benefits:
- ASME Section IV Certified: Verified performance for hot water heating boilers and related pressure vessels.
- High BTU Rating: Massive 3,918,000 BTU/hr set @ 60 PSI for superior system safety in high-output applications.
- Superior Construction: Features a bronze body and silicone seat to withstand the rigors of continuous hydronic service.
- Isolated Spring Design: The fabric-reinforced molded diaphragm keeps the spring dry, preventing corrosion and extending the life of the unit.
- Domestic Reliability: Performance-tested part manufactured to strict quality standards for professional-grade HVACR installations.
Common Questions:
What is the maximum operating temperature for this relief valve?
The Conbraco 10-606-12 is rated for a maximum temperature of 250°F (121°C).
Can this valve be used for steam applications?
No, this unit is an ASME Section IV valve specifically designed for hot water heating systems and should not be used for steam service.
What is the recommended pressure margin for this valve?
To prevent seat leakage, it is recommended to maintain an operating pressure margin of at least 10 PSI or 25% below the 60 PSI set pressure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
