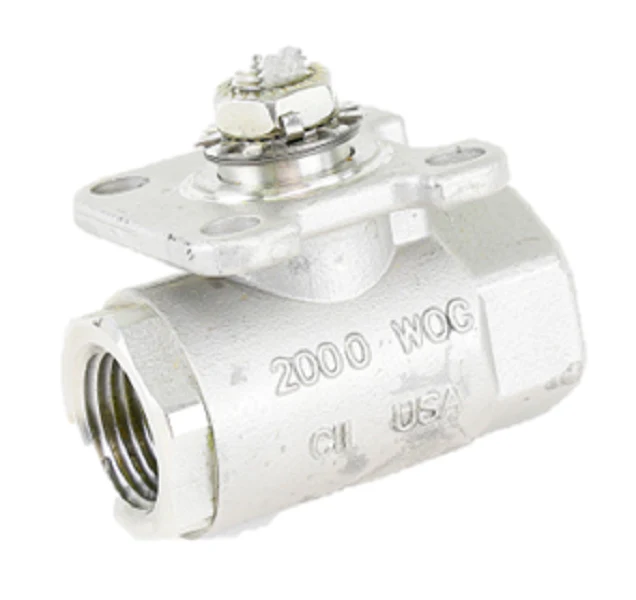

Conbraco 76-AR3-64 Ball Valve
The Conbraco 76-AR3-64 Ball Valve is a heavy-duty 1/2" NPT stainless steel ball valve engineered specifically for high-pressure industrial and HVACR environments. This Apollo 76-AR series component features a durable 2-piece investment cast body made from ASTM A351-CF8M stainless steel, ensuring excellent corrosion resistance and structural integrity. Designed as an actuator-ready ball valve, it includes an integrated ISO 5211 mounting pad for seamless automation without the need for custom brackets. The internal assembly utilizes a 316 SS ball and stem paired with MPTFE seats and stuffing box ring, providing a bubble-tight seal and a maximum pressure rating of 2000 psig CWP (Cold Working Pressure) and 250 psig for saturated steam. The blowout-proof stem design and live-loaded packing enhance safety and performance longevity in demanding process systems.
Key Benefits
- High-Pressure Performance: Rated for up to 2000 psi in cold non-shock service, ideal for rigorous fluid control.
- Automation Ready: The built-in ISO 5211 mounting pad allows for direct mounting of pneumatic or electric actuators.
- Superior Materials: Features a 316 stainless steel ball and MPTFE seats for chemical compatibility and wear resistance.
- Standard Port Design: Optimizes flow characteristics while maintaining a compact 2-piece body footprint.
- Maintenance Optimized: Includes an adjustable packing gland and a multi-piece packing set to prevent leaks.
Common Questions
Does this valve come with a handle?
No, the 76-AR3-64 is an actuator-ready model. It is designed to be paired with an automated control system and does not include a manual lever.
What are the media temperature limits for this valve?
Equipped with MPTFE seats, this valve can handle temperatures up to 500°F depending on the operating pressure, making it suitable for 250 psi saturated steam applications.
Is the mounting pad compatible with standard actuators?
Yes, the mounting pad follows the ISO 5211 standard, ensuring compatibility with most industrial actuators used by HVACR contractors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
