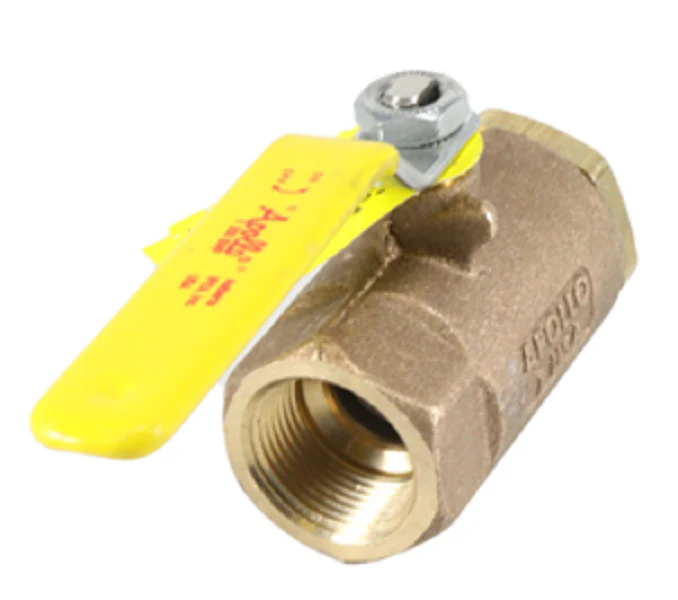

Conbraco 70-145-64 Ball Valve
The Apollo Conbraco 70-145-64 is a professional-grade 1-inch NPT ball valve specifically engineered for high-demand industrial steam applications. As a veteran-preferred 2-way bronze ball valve, this unit features a heavy-duty B584-C84400 bronze body and a 316 stainless steel ball and stem, ensuring superior resistance to corrosion and scaling in saturated steam environments. It is equipped with the specialized -64 steam trim, which incorporates Multifill MPTFE seats and packing to reliably handle 250 PSI saturated steam and up to 600 PSI CWP. The blow-out proof stem and adjustable packing gland provide the robust safety and field-serviceability contractors require for critical steam line maintenance. Designed with a standard port configuration and a high-strength zinc-plated steel lever handle, this valve delivers consistent flow control and thermal stability up to 500°F. This industrial steam service valve meets MSS SP-110 standards, making it a drop-in solution for vacuum service and high-pressure steam headers.
Key Benefits- High-Pressure Steam Rated: Purpose-built with 250# steam trim and MPTFE seats for safe operation in saturated steam systems.
- Corrosion Resistance: Features a high-grade 316 stainless steel ball and stem to prevent pitting and extend service life in harsh media.
- Enhanced Safety: The blow-out proof stem design prevents internal pressure from ejecting the stem, protecting technicians during operation.
- Field Adjustable: Includes an adjustable packing gland to easily take up slack and stop leaks without removing the valve from the line.
- Versatile Compatibility: Rated for vacuum service to 29 in. Hg and 600 PSI CWP, providing a wide application range for mechanical contractors.
Is this valve suitable for potable water?
This specific model is a bronze industrial valve. For potable water applications, you must verify local lead-free requirements, as this series is primarily optimized for industrial steam service and mechanical systems.
What is the maximum temperature rating for the -64 trim?
With the Multifill MPTFE seats, this valve is designed to withstand temperatures up to 500°F, specifically for 250 PSI saturated steam applications.
Can the handle be replaced or locked?
Yes, the Apollo 70-100 series supports various handle options, including locking lever kits and stainless steel upgrades, though the standard zinc-plated steel lever is included.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
