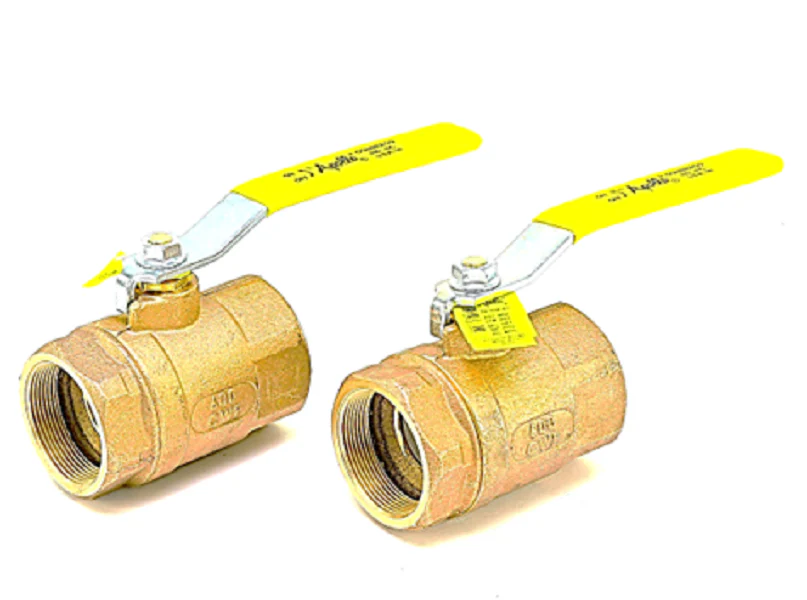

Conbraco 70-108-01 Ball Valve
The Conbraco 70-108-01, also recognized as the Apollo 70-100 series ball valve, is a heavy-duty 2 inch bronze ball valve engineered for reliable isolation in commercial and industrial piping systems. This two-piece manual ball valve features a robust B584-C84400 bronze body and a chrome-plated brass ball, providing a dependable seal across a wide range of media including water, oil, and gas. Designed with a 600 PSI CWP rating and capable of handling 150 PSI saturated steam, it incorporates an adjustable packing gland and a blow-out proof stem to ensure long-term operational safety. The female NPT threaded connections provide a secure fit for standard 2" piping, while the RPTFE seats and stuffing box ring offer excellent chemical resistance and thermal stability up to 500°F. For contractors requiring a standard port ball valve that meets MSS SP-110 compliance, this Apollo valve remains the industry benchmark for durability and serviceability in the field.
Key Benefits- High Pressure Rating: Rated for 600 PSI cold working pressure (CWP) and vacuum service to 29 inches of Hg.
- Durable Construction: Built with a corrosion-resistant bronze body and a heavy-duty zinc-plated steel lever handle with a vinyl grip.
- Safe Operation: Features a blow-out proof stem design and an adjustable stem packing gland for easy maintenance.
- Thermal Versatility: Operates efficiently in temperatures ranging from -20°F up to 500°F.
- Trusted Compliance: Manufactured in the USA and meets MSS SP-110 standards for threaded ball valves.
- What is the difference between standard port and full port for this 2" valve? This 70-108-01 is a standard port model, meaning the internal opening of the ball is slightly smaller than the pipe diameter, balancing flow capacity with a more compact and cost-effective body design than full-port alternatives.
- Can this bronze ball valve be used for steam applications? Yes, it is rated for saturated steam up to 150 PSI, making it suitable for low-pressure steam heating systems.
- Is the 70-108-01 suitable for potable water? This specific model is the standard bronze version; for potable water systems requiring lead-free compliance, contractors should specify the "LF" (Lead-Free) series.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
