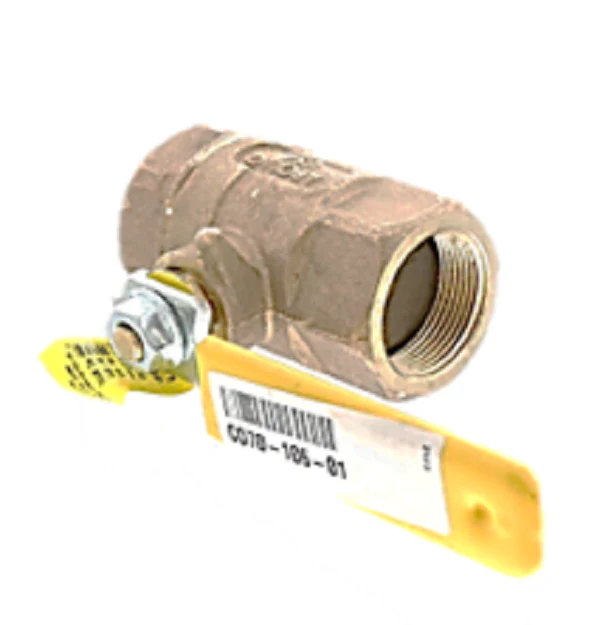

Conbraco 70-106-01 Valve
The Conbraco 70-106-01 is a commercial-grade 1-1/4" female NPT manual ball valve engineered for high-demand HVAC and industrial fluid control. Built with a two-piece bronze body, this valve is rated for 600 PSI CWP (Cold Working Pressure) and 150 PSI saturated steam, making it a reliable choice for mechanical rooms and utility piping. The standard port design features a chrome-plated brass ball and RPTFE seats for a tight shutoff and smooth operation over time. For field serviceability and safety, it includes a blow-out proof stem and an adjustable packing gland to prevent leaks at the high-wear stem seal. This 70-100 series model is MSS SP-110 compliant and capable of handling temperatures up to 500°F. Its heavy-duty construction is designed to withstand 29 inches Hg vacuum service, providing a versatile solution for contractors managing complex water and steam systems.
Key Benefits- Maximum System Integrity: The two-piece bronze construction provides superior corrosion resistance in HVACR and hydraulic applications.
- Enhanced Safety: A blow-out proof stem design ensures operator safety under high-pressure conditions.
- Field Serviceability: Features an adjustable packing gland, allowing technicians to tighten the stem seal and eliminate leaks without removing the valve from the line.
- Wide Operating Range: Rated for up to 600 PSI and high-temperature steam environments up to 500°F.
- Reliable Sealing: Equipped with reinforced PTFE (RPTFE) seats and MPTFE stem packing for low-torque operation and longevity.
Is the Apollo 70-106-01 suitable for saturated steam applications?
Yes, this valve is rated for 150 PSI saturated steam, provided that the operational temperature does not exceed the 500°F limit of the soft goods.
Yes, it is technicaly rated for vacuum service to 29 inches Hg, making it suitable for industrial vacuum systems. Is the internal ball made of stainless steel?
The standard 70-106-01 model features a chrome-plated brass ball. For applications requiring full stainless steel trim, a different series suffix would be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
