Conbraco 70-105-01 Valve

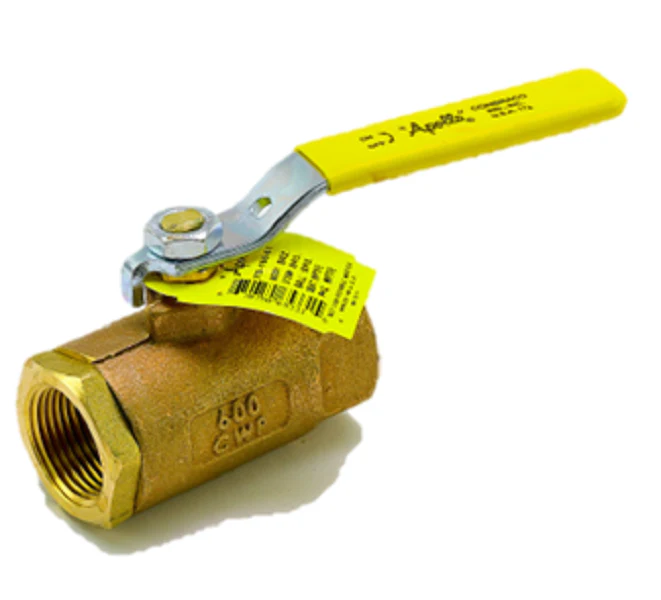

The Conbraco 70-105-01 is a 1" female npt Two-Piece Bronze Manual Ball Valve engineered for reliable performance in demanding commercial and industrial piping systems. Built with a 600 PSI CWP rating, this Apollo 70-100 series valve is a staple for veteran contractors who require a persistent seal in water, oil, and gas applications. The cast bronze body (ASTM B584-C84400) provides superior corrosion resistance, while the chromium-plated ball and RPTFE seats ensure smooth operation even at temperatures reaching 500°F. For steam service, the unit maintains a 150 PSI SWP capacity. Technical refinements include a blowout-proof stem and an adjustable packing gland to mitigate leak paths under pressure variations. This standard port ball valve is 100% factory tested and meets MSS SP-110 standards, making it the preferred choice for mechanical rooms, HVAC utility piping, and general process services where vacuum ratings up to 29 in. Hg are required.
Key Benefits- 600 PSI WOG Rating: High-pressure capacity for non-shock water, oil, and gas media.
- RPTFE Sealing: Reinforced seats and MPTFE stem packing provide long-term bubble-tight shutoff.
- American Quality: Cast and machined in the USA, ensuring strict adherence to MSS SP-110 compliance.
- Field Serviceable: Features an adjustable gland nut to tighten the stem seal without removing the valve from the line.
- Steam Compatible: Rated for 150 psig saturated steam service, offering versatility across HVACR systems.
Is the 70-105-01 suitable for potable water?
This specific model is a leaded bronze valve and is intended for non-potable industrial, mechanical, and HVACR process applications. For potable water, refer to the "LF" (Lead-Free) series.
Can this valve be used in vacuum systems?
Yes, the 70-100 series is rated for vacuum service up to 29 inches of mercury (Hg).
What is the difference between this and a full port valve?
This is a standard port valve, meaning the internal orifice is slightly smaller than the pipe diameter. It offers a balanced profile of cost and flow performance for general shutoff duties.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
