Conbraco 50-GB8-A1A Valve

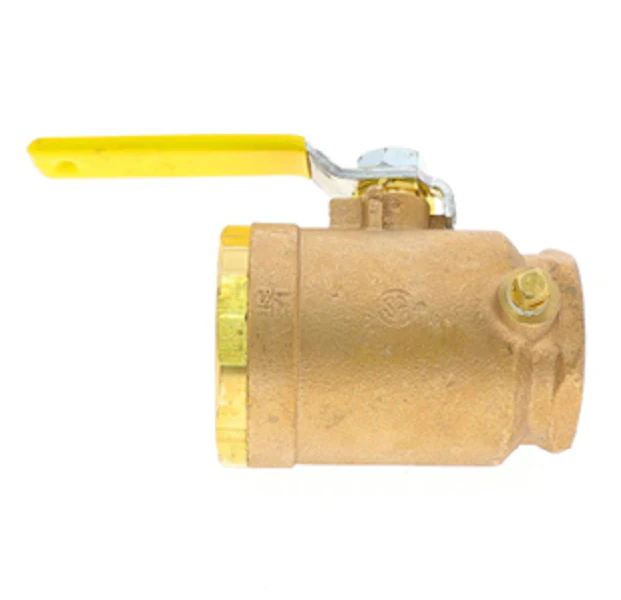

The Conbraco 50-GB8-A1A Valve is a professional-grade 2" FNPT bronze gas shutoff valve engineered specifically for high-capacity main burner applications. Built with an ASTM B584 bronze body and a chrome-plated brass ball, this 2-piece gas ball valve provides a bubble-tight seal for natural gas, LP gas, and mixed gas systems. As a veteran-preferred standard port gas valve, it features dual 1/4" NPT side pilot tappings, allowing for simultaneous pressure gauge monitoring and pilot light connectivity without additional fittings. Rated for 1/2 PSI at a massive 14,741,000 BTU/hr, it is the industry standard for commercial boilers and industrial furnaces. The Apollo 50-GB series is 100% factory tested and UL listed, ensuring the reliability required by mechanical contractors for heavy-duty fuel gas service. The die-cast tee handle offers a compact footprint for tight mechanical rooms while maintaining the high-torque actuation needed for 2-inch gas lines.
Key Benefits- High BTU Capacity: Supports up to 14,741,000 BTU/hr, making it suitable for large-scale industrial main burner manifolds.
- Dual Pilot Tappings: Integrated 1/4" NPT dual side taps eliminate the need for field-drilling or extra tees for pilot lines and sensors.
- Corrosion Resistance: ASTM B584 bronze construction and RPTFE packing ensure long-term integrity in harsh mechanical environments.
- Contractor-Grade Reliability: Features a blow-out proof stem design and 100% American-made quality for critical gas safety shutoff.
Is this valve suitable for high-pressure gas systems?
This specific model is designed for low-pressure gas applications up to 1/2 PSI. For 5 PSI requirements, always check the specific submittal data to ensure compliance with local fuel gas codes.
Can I use this for propane (LP) gas?
Yes, the 50-GB8-A1A is certified for use with natural gas, manufactured gas, mixed gases, and liquefied petroleum (LP) gas-air mixtures.
What is the purpose of the dual 1/4" tappings?
The dual tappings allow a technician to run a pilot light line from one side while installing a pressure test port or gauge on the other, streamlining the installation process during commissioning.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
