Conbraco 50-GB4-01A Valve

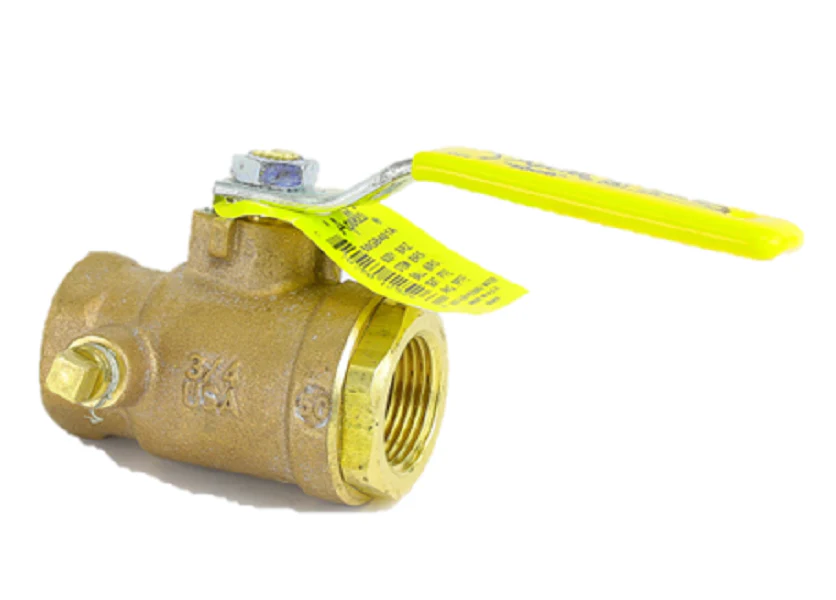

The Apollo 50-GB4-01A is a commercial-grade 3/4" bronze gas shutoff valve engineered for critical main burner applications. Constructed with an ASTM B584 bronze body and a chrome-plated brass ball, this 2-piece valve provides the chemical resistance and structural integrity required for natural gas, LP gas, and mixed gas systems. As a full port gas ball valve, it ensures maximum flow capacity with a high rating of 1,258,000 BTU/hr at 1" W.C. pressure drop, making it a reliable choice for high-demand industrial equipment.
This model features 1/8" NPT dual pilot tapping, allowing for the direct integration of pressure gauges or pilot lines without additional manifolding. The tee handle design provides a compact footprint for tight mechanical spaces while maintaining the leverage needed for a positive 1/4-turn shutoff. Rated for 1/2 PSI to 5 PSI gas pressures, the valve utilizes RPTFE seats and a blowout-proof stem to maintain a bubble-tight seal under varying thermal loads. Whether you are installing a new commercial range or retrofitting a boiler, the NPT threaded gas valve configuration provides a standard, secure connection for professional HVACR contractors.
Key Benefits for Technicians- Maximum Flow Efficiency: The full port design minimizes pressure drop, supporting systems up to 1.25 million BTU/hr.
- Integrated Monitoring: Dual 1/8" NPT side taps simplify the installation of manometers or pilot light assemblies.
- Corrosion Resistance: Heavy-duty bronze body construction (ASTM B584) prevents scaling and degradation in humid or industrial environments.
- Space-Saving Operation: The rugged zinc tee handle allows for easy operation in confined furnace or boiler cabinets.
- Multi-Fuel Compatibility: Certified for use with natural gas, manufactured gas, and LP gas-air mixtures.
What is the maximum BTU capacity of this valve?
This 3/4" valve is rated for 1,258,000 BTU/hr, specifically designed to handle the high-volume requirements of commercial main burners.
Can the 1/8" taps be used for pressure testing?
Yes, the dual tapping is standard 1/8" NPT, making it ideal for permanent pressure gauge mounting or temporary manometer connections during system commissioning.
Is this valve suitable for high-pressure gas lines?
This series is optimized for low-pressure gas applications, with specific certifications for 1/2 PSI and 5 PSI gas shutoff service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $72.22
-65%$72.22
$25.28Conbraco 50-GB4-01A Valve
The Apollo 50-GB4-01A is a commercial-grade 3/4" bronze gas shutoff valve engineered for critical main burner applications. Constructed with an ASTM B584 bronze body and a chrome-plated brass ball, this 2-piece valve provides the chemical resistance and structural integrity required for natural gas, LP gas, and mixed gas systems. As a full port gas ball valve, it ensures maximum flow capacity with a high rating of 1,258,000 BTU/hr at 1" W.C. pressure drop, making it a reliable choice for high-demand industrial equipment.
This model features 1/8" NPT dual pilot tapping, allowing for the direct integration of pressure gauges or pilot lines without additional manifolding. The tee handle design provides a compact footprint for tight mechanical spaces while maintaining the leverage needed for a positive 1/4-turn shutoff. Rated for 1/2 PSI to 5 PSI gas pressures, the valve utilizes RPTFE seats and a blowout-proof stem to maintain a bubble-tight seal under varying thermal loads. Whether you are installing a new commercial range or retrofitting a boiler, the NPT threaded gas valve configuration provides a standard, secure connection for professional HVACR contractors.
Key Benefits for Technicians- Maximum Flow Efficiency: The full port design minimizes pressure drop, supporting systems up to 1.25 million BTU/hr.
- Integrated Monitoring: Dual 1/8" NPT side taps simplify the installation of manometers or pilot light assemblies.
- Corrosion Resistance: Heavy-duty bronze body construction (ASTM B584) prevents scaling and degradation in humid or industrial environments.
- Space-Saving Operation: The rugged zinc tee handle allows for easy operation in confined furnace or boiler cabinets.
- Multi-Fuel Compatibility: Certified for use with natural gas, manufactured gas, and LP gas-air mixtures.
What is the maximum BTU capacity of this valve?
This 3/4" valve is rated for 1,258,000 BTU/hr, specifically designed to handle the high-volume requirements of commercial main burners.
Can the 1/8" taps be used for pressure testing?
Yes, the dual tapping is standard 1/8" NPT, making it ideal for permanent pressure gauge mounting or temporary manometer connections during system commissioning.
Is this valve suitable for high-pressure gas lines?
This series is optimized for low-pressure gas applications, with specific certifications for 1/2 PSI and 5 PSI gas shutoff service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
