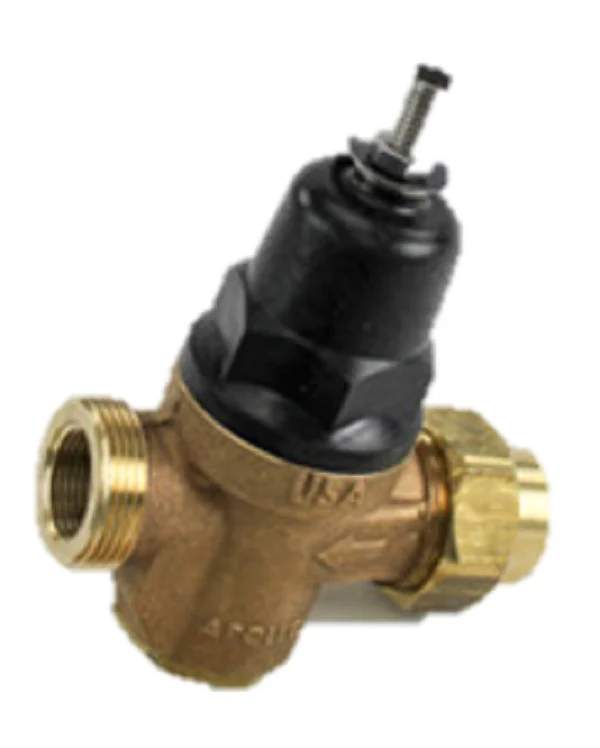

Conbraco 36C-104-02 Valve
The Conbraco 36C-104-02 Valve is a professional-grade water pressure reducing valve designed for sub-potable and technical water distribution systems. This heavy-duty Apollo 3/4 inch PRV features a robust bronze body construction and is engineered to manage high-pressure surges, supporting a 400 PSI maximum inlet pressure. With a specific 10-35 PSI outlet adjustment range, this model is ideal for low-pressure applications requiring precise downstream control. The 3/4" Union NPT x 3/4" Female NPT configuration allows for streamlined installation and maintenance.
Contractors value the 36C series for its balanced piston design, which ensures stable outlet pressure regardless of inlet fluctuations. The integral stainless steel strainer protects internal components and downstream equipment from sediment, while the built-in thermal expansion bypass prevents system over-pressurization. Designed for in-line servicing, the valve includes a bottom cleanout plug for quick access to the seat disc and 20-mesh strainer without removing the unit from the piping. This direct-acting regulator is ASSE 1003 and CSA B356 certified, ensuring compliance with strict industrial standards for performance and reliability in HVAC and mechanical systems.
Key Benefits- Precise Pressure Regulation: Specialized for low-pressure requirements with a 10-35 PSI field-adjustable range.
- Enhanced Durability: Corrosion-resistant thermoplastic cage and ASTM B584 bronze body ensure long-term service in demanding environments.
- Simplified Maintenance: Bottom access cleanout allows for rapid sediment removal and seat inspection.
- System Protection: Integrated thermal expansion bypass and stainless steel strainer safeguard sensitive downstream fixtures.
- High Pressure Capacity: Safely handles supply pressures up to 400 psig for residential and commercial infrastructure.
How do I adjust the outlet pressure on the 36C-104-02?
After installation, loosen the locknut on the sealed spring cage. Turn the stainless steel adjusting screw clockwise to increase downstream pressure or counter-clockwise to reduce it. Always use a downstream gauge to verify settings during flow conditions.
Can this valve be used for potable water systems?
The 36C-104-02 standard model is typically designated for non-potable applications. For systems requiring lead-free compliance for human consumption, ensure you are specifying the "LF" lead-free version of this series.
What is the maximum operating temperature for this regulator?
This unit is rated for a temperature range of 33°F to 180°F, making it suitable for both cold and hot water technical services.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
