Conbraco 34ALF-214-T Valve

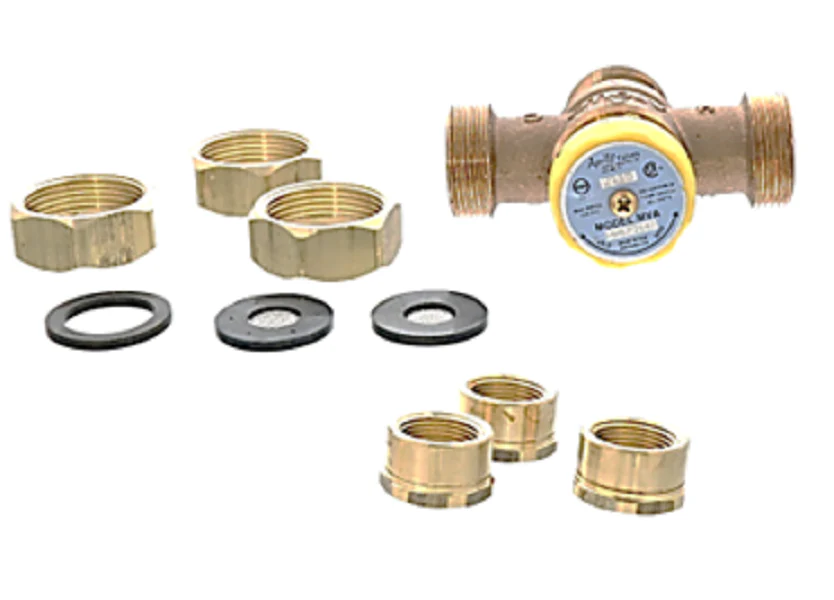

The Conbraco 34ALF-214-T Valve is a professional-grade thermostatic master mixing valve designed specifically for ASSE 1017 point of source applications. Engineered for precision in potable water distribution and hydronic heating systems, this 3/4" FNPT lead-free valve handles a temperature adjustment range of 85-140°F. The 34ALF-214-T features superior thermostatic element technology, utilizing a copper/wax-filled sensor and a Noryl modified PPO shuttle to maintain accurate discharge temperatures within ±5°F. For contractors overseeing commercial or residential installs, the lead-free bronze body (C89836) meets all NSF/ANSI 372 requirements and the Safe Drinking Water Act standards. Its integral inlet strainers and check valves are standard, preventing cross-flow and protecting the internal mechanism from debris. With a flow rate performance of 19 gpm at 30 psid and a minimum flow of 0.5 gpm, this Apollo thermostatic mixing valve ensures consistent delivery even during low-demand periods, while providing critical fail-safe protection by shutting off the flow if the cold or hot water supply fails.
Key Benefits
- Scald Protection: Instantaneous shut-off protection if cold or hot water supply is interrupted.
- Internal Protection: Features integral inlet strainers and check valves to eliminate cross-flow and block foreign particles.
- High Performance: Robust C89836 lead-free bronze construction with chloramine-resistant EPDM O-rings for long-term durability.
- Precise Control: Fingertip temperature adjustment with an optional tamper-resistant maximum temperature limit.
- Code Compliance: Triple listed to ASSE 1017, CSA B125.3, and NSF 372 for universal project approval.
Common Questions
What is the maximum pressure for the 34ALF-214-T?
This valve is rated for a maximum working pressure of 150 psig.
Is the Conbraco 34ALF-214-T suitable for radiant heating?
Yes, its 85-140°F range is ideal for many radiant floor applications, though higher temperature models are available for specific baseboard needs.
Can the temperature setting be locked?
The valve includes a tamper-resistant calibration option to prevent unauthorized adjustment of the maximum temperature setting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $420.43
-65%$420.43
$147.15Conbraco 34ALF-214-T Valve
The Conbraco 34ALF-214-T Valve is a professional-grade thermostatic master mixing valve designed specifically for ASSE 1017 point of source applications. Engineered for precision in potable water distribution and hydronic heating systems, this 3/4" FNPT lead-free valve handles a temperature adjustment range of 85-140°F. The 34ALF-214-T features superior thermostatic element technology, utilizing a copper/wax-filled sensor and a Noryl modified PPO shuttle to maintain accurate discharge temperatures within ±5°F. For contractors overseeing commercial or residential installs, the lead-free bronze body (C89836) meets all NSF/ANSI 372 requirements and the Safe Drinking Water Act standards. Its integral inlet strainers and check valves are standard, preventing cross-flow and protecting the internal mechanism from debris. With a flow rate performance of 19 gpm at 30 psid and a minimum flow of 0.5 gpm, this Apollo thermostatic mixing valve ensures consistent delivery even during low-demand periods, while providing critical fail-safe protection by shutting off the flow if the cold or hot water supply fails.
Key Benefits
- Scald Protection: Instantaneous shut-off protection if cold or hot water supply is interrupted.
- Internal Protection: Features integral inlet strainers and check valves to eliminate cross-flow and block foreign particles.
- High Performance: Robust C89836 lead-free bronze construction with chloramine-resistant EPDM O-rings for long-term durability.
- Precise Control: Fingertip temperature adjustment with an optional tamper-resistant maximum temperature limit.
- Code Compliance: Triple listed to ASSE 1017, CSA B125.3, and NSF 372 for universal project approval.
Common Questions
What is the maximum pressure for the 34ALF-214-T?
This valve is rated for a maximum working pressure of 150 psig.
Is the Conbraco 34ALF-214-T suitable for radiant heating?
Yes, its 85-140°F range is ideal for many radiant floor applications, though higher temperature models are available for specific baseboard needs.
Can the temperature setting be locked?
The valve includes a tamper-resistant calibration option to prevent unauthorized adjustment of the maximum temperature setting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
