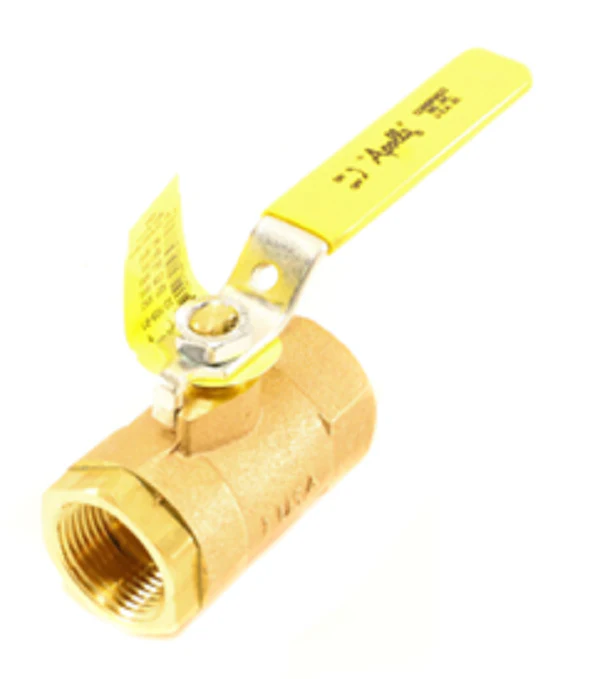

Conbraco 32-105-01 Ball Valve
The Conbraco 32-105-01 is a high-performance 1" NPT regular port bronze ball valve designed for demanding commercial and industrial HVACR applications. Engineered with a heavy-duty ASTM grade cast bronze body, this two-piece manual valve provides superior corrosion resistance and structural integrity compared to standard brass alternatives. It features a chromium-plated ball and a blow-out proof stem design, ensuring reliable flow control and safety under pressure. Rated for 400 PSI CWP (Cold Working Pressure) and 125 PSI SWP (Steam Working Pressure), it is an ideal solution for hot water, chilled water, and low-pressure steam systems where durability is non-negotiable.
For contractors, the 32-105-01 Apollo valve offers easy maintenance through its adjustable packing gland and RPTFE stem packing, which prevents leaks in high-cycle environments. This female NPT ball valve integrates seamlessly into existing threaded piping systems, providing a secure, leak-tight seal with a reinforced PTFE seat for long-term service life. Whether managing mechanical room headers or industrial process lines, this American-made manual bronze valve delivers the consistent performance expected by HVAC professionals.
Key Benefits- Enhanced Durability: Constructed from ASTM B584 bronze for maximum resistance to dezincification and stress corrosion cracking.
- High Pressure Rating: Safely handles up to 400 PSI non-shock CWP and 125 PSI saturated steam.
- Reliable Sealing: Equipped with RPTFE seats and a blow-out proof stem to maintain system vacuum and pressure integrity.
- Field Serviceable: Features an adjustable packing gland to extend the valve's lifecycle without requiring full replacement.
- Precision Control: The chromium-plated ball ensures smooth actuation and consistent torque over thousands of cycles.
Is the Conbraco 32-105-01 suitable for potable water?
This specific model is a standard bronze alloy. For applications governed by lead-free requirements, such as current U.S. safe drinking water standards, we recommend verifying if your local codes require the lead-free (LF) version of this series.
What is the difference between this regular port valve and a full port valve?
A regular port ball valve has an opening slightly smaller than the pipe diameter. While it provides a minor increase in pressure drop compared to a full port valve, it offers a more compact profile and cost-efficient performance for most HVAC throttling and isolation needs.
Can this valve be used in steam applications?
Yes, the 32-105-01 is rated for 125 PSI SWP, making it a reliable choice for low-pressure steam lines and condensate return systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
