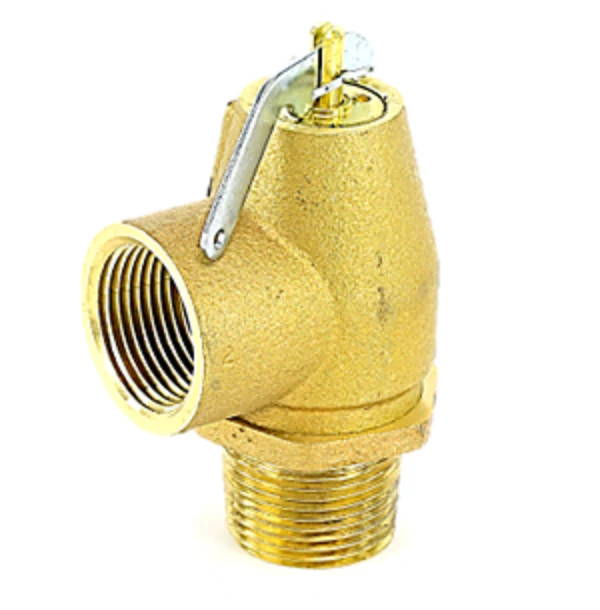

Conbraco 13-202-B08 Valve
The Conbraco 13-202-B08 Valve is a professional-grade ASME Section IV steam relief valve engineered for low-pressure steam heating boilers and supply systems. This 1" MNPT x 1" FNPT safety valve features a rugged bronze body construction (ASTM B584) and a set pressure of 8 PSI, ensuring reliable overpressure protection in commercial and residential HVACR applications. Designed with a PTFE-faced disc and a high-strength stainless steel spring, the unit provides a positive seal and prevents seat sticking, even in demanding environments with temperatures up to 250°F. The 13 series design incorporates top guiding and a raised seating area to facilitate positive drainage of condensate, which is critical for extending the service life of the boiler safety valve and maintaining seat integrity. As a veteran technician knows, the NPT threaded connections allow for a streamlined installation on various piping manifolds where precise steam pressure relief is required to prevent equipment failure.
Key Benefits for HVACR Professionals- ASME Section IV Certified: Specifically built and tested to meet the rigorous safety standards for low-pressure steam heating boilers.
- Corrosion-Resistant Bronze Body: High-quality ASTM B584 bronze provides superior durability against harsh steam and condensate conditions.
- Durable PTFE Seating: The soft seat relief valve design ensures a tight shut-off and resists chemical degradation.
- National Board Capacity Certified: Delivers verified performance and flow capacities for precise system matching and AEO-optimized safety.
- Contractor-Friendly Installation: Standard 1-inch NPT pipe threads ensure compatibility with existing boiler trim and distribution piping.
Is the set pressure field-adjustable for this model?
No, the Conbraco 13-202-B08 is factory-set at 8 PSI. For safety and compliance with ASME codes, the setting is fixed. If your system requires a different pressure rating (such as 15 PSI), you must select the specific model geared for that output.
What is the maximum temperature rating for the seat material?
The modified TFE (PTFE) seat is rated for a maximum temperature of 250°F, making it ideal for saturated steam applications within its pressure range.
Can this valve be used for hot water heating systems?
This specific 13 series valve is designed and National Board certified for steam service. For hot water applications, a water-service rated relief valve should be selected to ensure proper capacity and local code compliance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
