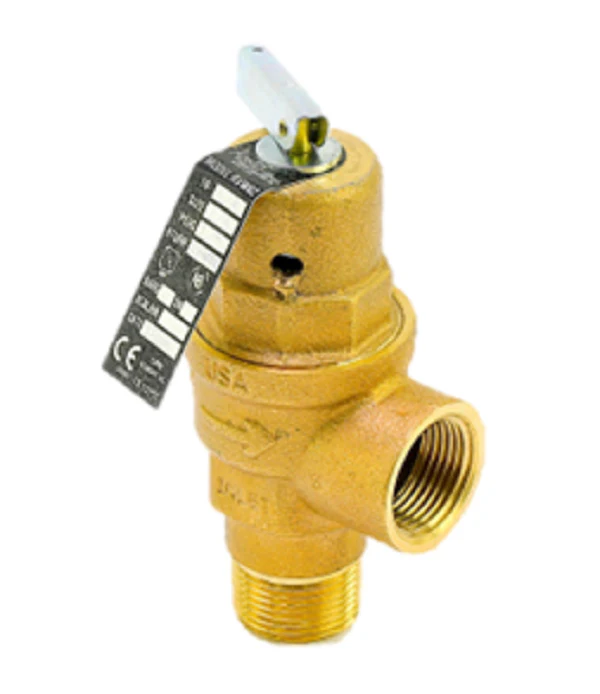

Conbraco 10-624-125 Valve
The Conbraco 10-624-125 Valve is a high-capacity hot water pressure relief valve designed specifically for ASME Section IV heating boilers and hydronic systems. This 3/4" industrial safety valve is factory-set at 125 PSI, providing a staggering 2,199,000 BTU/hr capacity to prevent overpressure conditions in large-scale residential and commercial installations. Engineered by Apollo Valves, this bronze safety relief valve features a corrosion-resistant body, a silicone seat for positive shut-off, and a stainless steel spring for reliable mechanical operation. The configuration includes a 3/4" Male NPT inlet and a 3/4" Female NPT outlet, ensuring a seamless fit for standard piping. Its diaphragm-isolated spring chamber protects the working components from water and steam, making it a rugged choice for hydronic heating boiler maintenance and system protection.
Key Benefits- High BTU Rating: Delivers thermal relief capacity up to 2,199,000 BTU/hr, suitable for high-demand heating systems.
- ASME Certified: National Board capacity certified to meet strict ASME Section IV safety standards.
- Durable Construction: Features a ASTM B584 Bronze body and corrosion-resistant internals for long-term service in harsh environments.
- Precise Pressure Control: Pre-set at 125 PSI with a high-temperature threshold of 250°F to ensure system integrity.
- American Made: Manufactured in the USA, adhering to rigorous ISO 9001:2008 quality management processes.
What is the maximum operating temperature for the 10-624-125?
This valve is rated for a maximum temperature of 250°F (121°C) when utilized in hot water heating applications.
Can this relief valve be mounted horizontally?
No, for proper operation and to satisfy safety codes, this valve must be mounted in a vertical, upright position directly to the boiler or pressure vessel.
Is this valve suitable for steam service?
The 10-600 series is primarily designed for hot water heating boilers and hydronic systems. Always verify that the certified BTU capacity matches your specific boiler output.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
