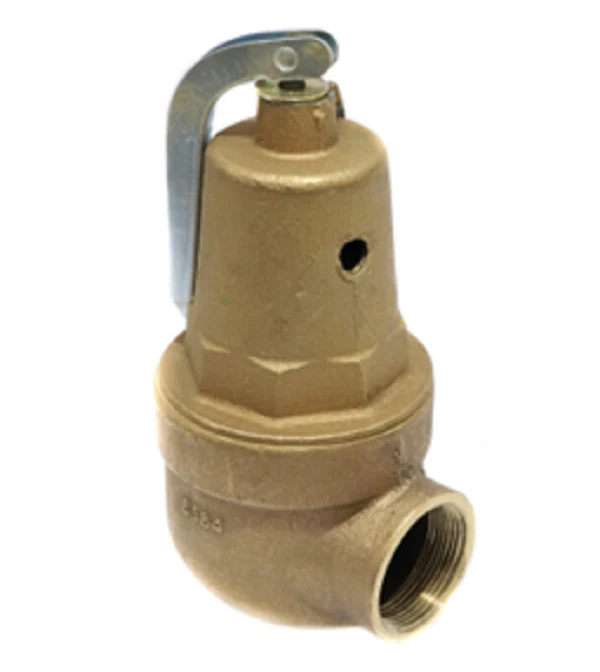

Conbraco 10-616-07 Valve
As a seasoned contractor, you know that protecting high-output hydronic systems requires more than just a standard relief valve. The Conbraco 10-616-07 Valve, also known as the Apollo 10-600 series, is an ASME Section IV certified powerhouse designed specifically for large-scale hot water heating boilers. With a massive 3,343,000 BTU capacity and a factory set pressure of 40 PSI, this valve is engineered to handle the thermal expansion and over-pressurization risks common in commercial boiler rooms. The 10-616-07 features a 1-1/4" Female NPT inlet and an oversized 1-1/2" Female NPT outlet, ensuring rapid discharge when limits are reached. Its bronze body construction and silicone seat provide excellent resistance to mineral buildup and corrosion, while the diaphragm-isolated spring chamber keeps the mechanical components away from the water stream to prevent scaling. Rated for temperatures up to 250°F, this high capacity pressure relief valve is the reliable choice for maintaining the safety and integrity of commercial hydronic systems.
Key Benefits- ASME Section IV Certified: National Board capacity certified to meet strict safety codes for hot water supply systems.
- High BTU Rating: Rated for 3,343,000 BTU/hr to protect even the largest commercial heating boilers.
- Enhanced Durability: Features an ASTM B584 bronze body and an EPDM/silicone soft seat for a tight seal and long-term reliability.
- Corrosion Protection: The fabric-reinforced molded diaphragm isolates the spring from the process media at all times.
- Superior Drainage: Designed with an elevated seat to facilitate water drainage away from the seat area.
- What is the difference between the 10-616 and 10-606 models? The 10-616 model features an expanded 1-1/2" outlet for higher discharge capacity, whereas the 10-606 typically has a standard 1-1/4" outlet.
- Can this valve be used for steam applications? No, this is a Section IV valve specifically rated for water service in heating boilers and supply systems; it is not for steam boiler use.
- What mounting orientation is required? For optimal performance and code compliance, these valves must be installed in a vertical upright position.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $545.89
-65%$545.89
$191.06Conbraco 10-616-07 Valve
