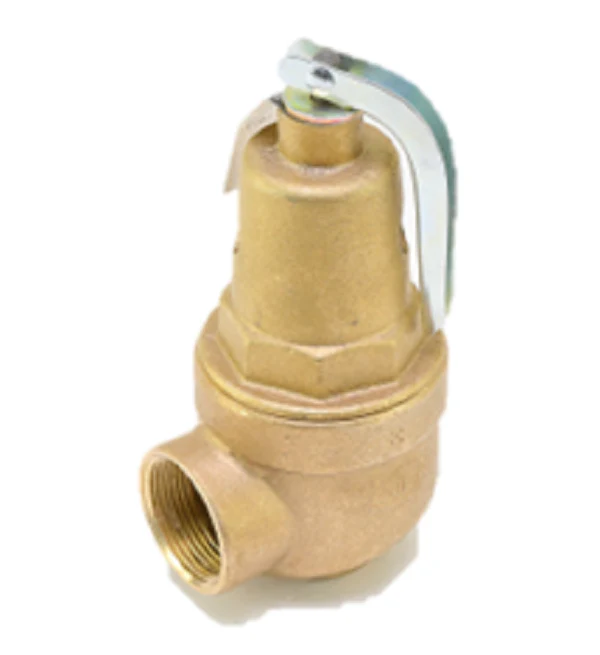

Conbraco 10-615-07 Valve
The Conbraco 10-615-07 Valve is a high-capacity ASME Section IV safety relief valve specifically engineered for hot water heating boilers and hydronic systems. Featuring a rugged ASTM B584 bronze body, this 1" NPT inlet by 1.25" NPT outlet valve is factory-set at 40 PSI to ensure reliable overpressure protection. With a certified flow capacity of 1,933,000 BTU/hr, it is an essential component for commercial and industrial boiler pressure relief applications where high-volume discharge is required. The design includes a fabric-reinforced EPDM/silicone diaphragm that effectively isolates the spring chamber from the system media, preventing corrosion and ensuring consistent performance. A standard lift lever allows for manual testing, while the oversize outlet prevents backpressure build-up during discharge. This Apollo 10-600 series valve is National Board capacity certified, making it the professional choice for maintaining code compliance in high-demand heating environments.
Key Benefits:- High BTU Rating: Certified for 1,933,000 BTU/hr to handle large-scale hydronic heating loads.
- Corrosion-Resistant Construction: Heavy-duty bronze body and plated alloy steel spring ensure longevity in harsh environments.
- Diaphragm Isolation: Reinforced diaphragm protects internal components from water and sediment.
- ASME Certified: Meets strict ASME Section IV and National Board safety standards for pressure-relieving devices.
- Elevated Seat Design: Facilitates positive drainage away from the seating area to prevent mineral buildup and sticking.
What is the maximum temperature rating for this relief valve?
The 10-615-07 is rated for a maximum operating temperature of 250°F (121°C).
Can this valve be installed in a horizontal orientation?
No, for proper operation and to meet code requirements, this safety valve must be mounted in a vertical upright position directly to the pressure vessel.
Is this valve suitable for steam boiler applications?
This specific model is designed and certified for hot water heating boilers and liquid service, not for steam-generating boilers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
