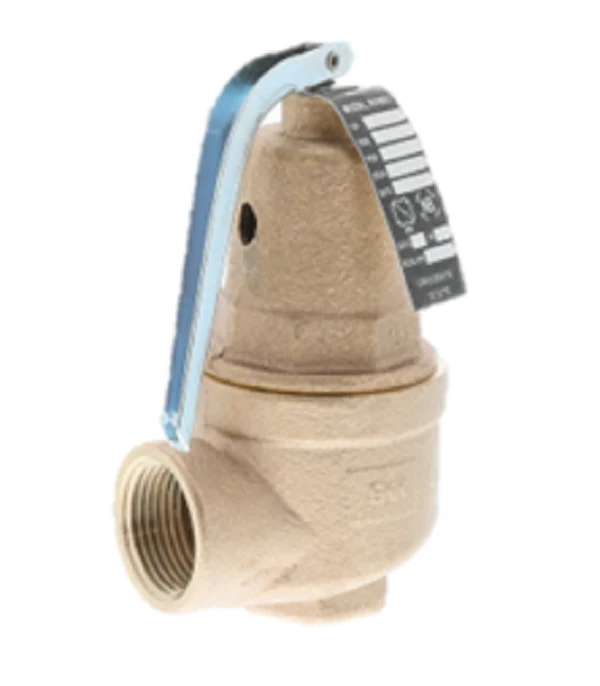

Conbraco 10-614-11 Valve
The Conbraco 10-614-11 Valve is a high-capacity, ASME Section IV certified safety relief device designed specifically for hot water heating boilers and hydronic systems. Featuring a rugged bronze body and a 1,115,000 BTU/hr rating, this Apollo 10-600 series valve provides critical overpressure protection by utilizing an oversized 1-inch outlet to maximize discharge flow. To ensure consistent performance in demanding contractor environments, the internal spring is completely isolated from the water media by a fabric-reinforced silicone diaphragm, preventing corrosion and mineral buildup in the spring chamber. This hot water relief valve comes factory-set at 55 PSI and supports a maximum service temperature of 250°F. The 3/4" FNPT inlet and 1" FNPT outlet configuration facilitates easy drainage away from the seat area, while the National Board capacity certification ensures the unit meets strict safety codes for commercial and residential boiler installations.
Key Benefits- High BTU Capacity: Rated for systems up to 1,115,000 BTU/hr to handle high-output boiler requirements.
- Oversized Outlet: Features a 1" discharge port to reduce backpressure and increase flow efficiency compared to standard models.
- Corrosion Resistance: Built with a durable ASTM B584 bronze body and stainless steel spring for long-term reliability in hydronic loops.
- Positive Seating: The silicone seat provides a tight seal and resists sticking even after long periods of inactivity.
- Diaphragm Isolation: Protects moving parts from sediment and water-borne contaminants, ensuring the valve activates at the precise set pressure.
What is the difference between the 10-614 and 10-604 series?
The 10-614 series features an "oversized" or expanded outlet (1" outlet for a 3/4" inlet), which allows for a higher BTU rating and more efficient discharge than the standard 10-604 series (which has a 3/4" outlet).
Can this valve be mounted horizontally?
No. For proper operation and to ensure the seat drains correctly, this valve must be installed in a vertical, upright position directly into the boiler tapping or a clean pipe header.
Is this relief valve suitable for steam service?
This specific model is designed and ASME Section IV certified for water service only. It should not be used in steam boiler applications that require Section I or Section VIII safety valves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
