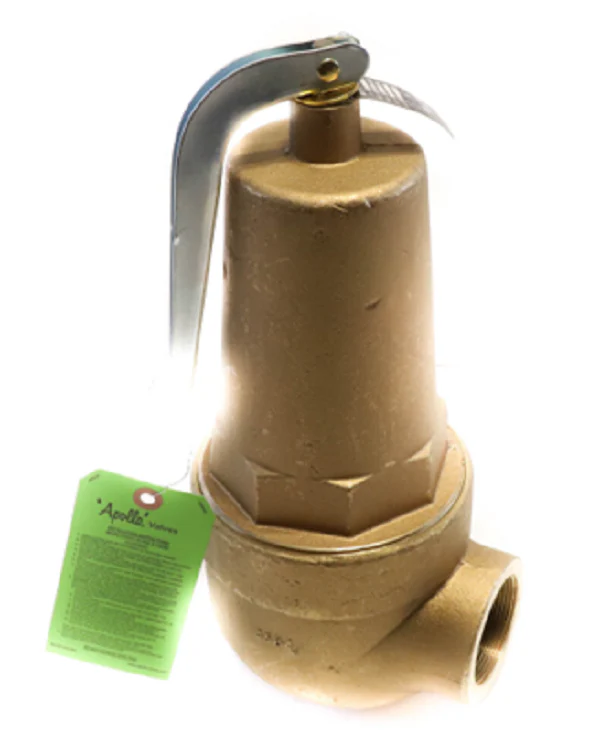

Conbraco 10-608-12 Valve
The Conbraco 10-608-12 Valve is a high-capacity hot water safety relief valve designed specifically for heavy-duty protection of hydronic heating boilers and supply systems. This model features 2" Female NPT inlet and outlet connections and is factory-set at 60 PSI to prevent over-pressurization. With a massive 8,786,000 BTU capacity, it meets the rigorous demands of large-scale commercial and industrial heating applications. The Apollo 10-600 series construction includes a durable ASTM B584 bronze body and a silicone seat to ensure reliable sealing even under high-temperature conditions up to 250°F. The design incorporates a diaphragm-isolated spring chamber, which protects the spring from water contact and mineral buildup, and an elevated seat for effective drainage. This valve is ASME Section IV certified and National Board capacity rated, making it a critical safety component for any professional HVAC technician or mechanical contractor managing high-output hydronic systems.
Key Benefits- Maximum Protection: Exceptional 8,786,000 BTU/hr discharge capacity handles high-output boiler systems.
- Corrosion Resistance: Heavy-duty cast bronze body and spring cage provide long-term structural integrity.
- Reliable Sealing: Features a silicone seat and fabric-reinforced molded diaphragm for consistent performance.
- Serviceability: Elevated seat design facilitates water drainage away from the seat area, reducing the risk of scale deposits.
- Industry Compliance: ASME Section IV and National Board certified for code-compliant installations.
What is the maximum operating temperature for this relief valve?
The Conbraco 10-608-12 is rated for a maximum temperature of 250°F (121°C), suitable for most hot water heating boilers.
Can the 10-608-12 be used for steam applications?
No, this is a hot water high capacity pressure relief valve. It is designed and certified specifically for liquid water service under ASME Section IV guidelines, not for steam.
Is this valve compliant with Canadian regulations?
Yes, this series carries a Canadian Registration Number (CRN), making it suitable for use in all Canadian provinces and territories.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
