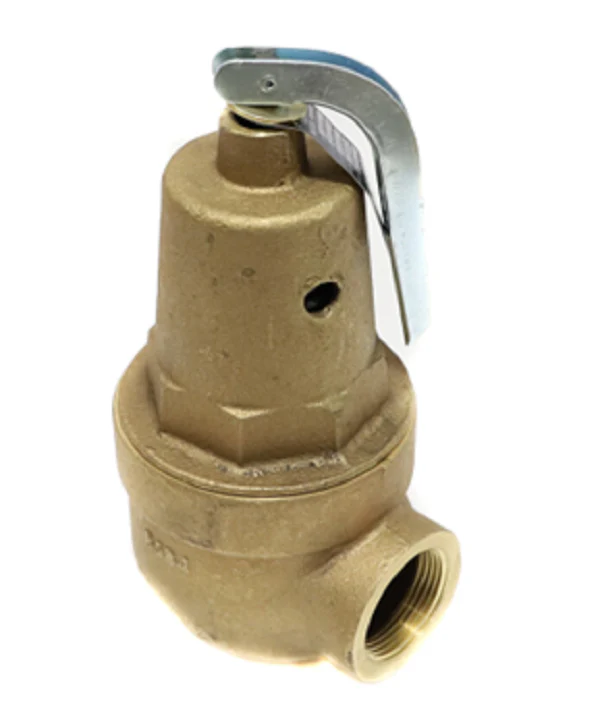

Conbraco 10-606-15 Valve
The Conbraco 10-606-15 Valve is a high-capacity, ASME Section IV certified safety relief valve engineered specifically for hot water heating boilers and large-scale hydronic systems. This high-capacity pressure relief valve features a 1 1/4" Female NPT inlet and outlet, factory-preset at a 75 PSI set pressure with a robust discharge capacity of 4,720,000 BTU/HR. Built for the rigors of mechanical rooms, its ASTM B584 bronze body and spring cage provide superior corrosion resistance, while the silicone seat ensures a positive seal under high temperatures up to 250°F. The unique diaphragm-isolated spring chamber prevents the plated alloy steel spring from contact with the process media, mitigating mineral buildup and ensuring consistent lift. This Apollo 10-600 series valve is the industry standard for contractors requiring National Board-certified overpressure protection in commercial heating applications.
Key Benefits:
- High BTU Rating: Certified for 4.72 million BTU/hr, making it suitable for high-demand commercial boilers.
- Corrosion Resistant: Features a bronze body and stainless steel hardware for long-term service in harsh environments.
- Advanced Protection: The fabric-reinforced molded diaphragm isolates the spring chamber from water for increased reliability.
- Compliance Ready: Meets ASME Section IV and CRN requirements for jurisdictional boiler inspections.
- Enhanced Drainage: Designed with an elevated seat to prevent water from pooling around the seating area between cycles.
Common Questions:
What is the maximum operating temperature for this valve?
The 10-606-15 is rated for hot water service up to a maximum temperature of 250°F (121°C).
Can this valve be used for steam applications?
No, this specific model is an ASME Section IV valve designed for hot water heating systems; for steam service, a Section I or Section VIII valve should be selected.
What piping should be used for the discharge line?
It is recommended to use Schedule 40 pipe. The discharge line must be at least the same diameter as the 1 1/4" NPT valve outlet and run to a safe point of disposal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
