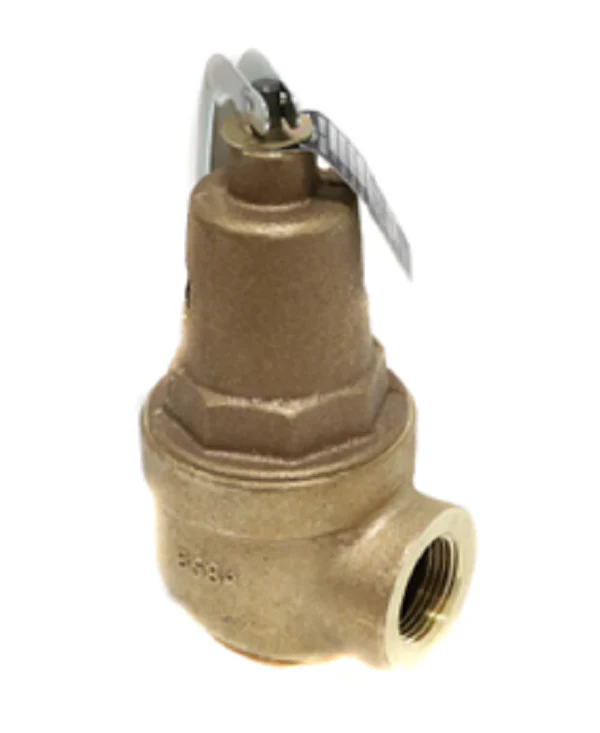

Conbraco 10-605-07 Valve
The Conbraco 10-605-07 is a high-capacity ASME Section IV certified safety relief valve engineered specifically for the protection of hot water heating boilers and hydronic systems. Featuring a rugged ASTM B584 bronze body, this 1-inch valve is designed to handle demanding commercial and industrial applications. It is factory set at 40 PSI and delivers an impressive 1,648,000 BTU capacity, ensuring reliable pressure management during control failure or thermal expansion. The 1" Female NPT inlet and outlet provide a secure, standard connection for seamless integration into existing piping. Utilizing a silicone seat and a fabric-reinforced EPDM diaphragm that isolates the spring chamber from the media, this Apollo 10-600 series valve prevents corrosion and scale buildup in the internal mechanism. This National Board certified component is a critical safety device for maintaining system integrity and preventing catastrophic equipment failure in high-output water heating environments.
Key Benefits:
- ASME Section IV Certified: Ensures compliance with strict safety standards for hot water heating boilers.
- Corrosion-Resistant Construction: Features a durable bronze body and an alloy steel plated spring for longevity in hydronic service.
- High Discharge Capacity: Rated for 1,648,000 BTU/hr to provide effective overpressure protection for large-scale systems.
- Isolated Spring Chamber: A reinforced diaphragm protects the spring from water contact, preventing mineral deposits and ensuring consistent set-pressure accuracy.
- Elevated Valve Seat: Designed to facilitate easy drainage away from the seating area, reducing the risk of seat leakage.
Common Questions:
Can the set pressure be field-adjusted?
No, this valve is factory set at 40 PSI. Any adjustment to the set pressure in the field will void the ASME certification and may compromise system safety. Always replace with a valve matched to the original specifications.
What is the maximum operating temperature?
This pressure relief valve is rated for a maximum temperature of 250°F (121°C), making it suitable for high-temperature hot water supply systems.
Is this valve suitable for steam applications?
No, the Conbraco 10-605-07 is specifically rated for water and liquid media. For steam service, a Section I or Section VIII safety valve designed for steam discharge must be used.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
