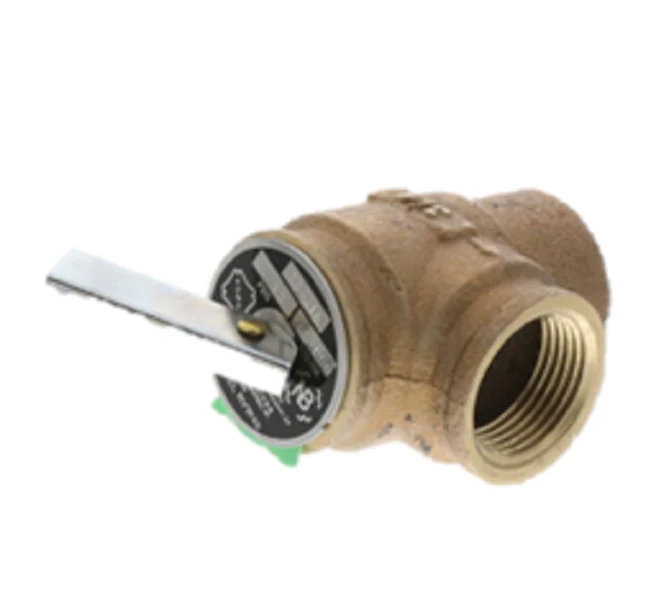

Conbraco 10-418-16 Valve
The Conbraco 10-418-16 Valve is a high-capacity ASME Section IV hot water pressure relief valve engineered for the protection of boilers and hydronic heating systems. Built with a durable bronze body and featuring a 3/4" Female NPT inlet and outlet, this unit is factory-set at 80 PSI to ensure system integrity. With a verified thermal capacity of 1,027,000 BTU/hr, it is designed to handle significant discharge requirements in commercial and residential residential heating applications. The Apollo 10-418 series utilizes a silicone seat to provide a reliable seal and a stainless steel spring for consistent actuation at the specified pressure. This professional-grade HVAC safety valve supports a maximum service temperature of 250°F, making it a standard choice for contractors looking for ASME certified relief valves that meet strict jurisdictional codes. Ensure the 10-418-16 matches your boiler’s output rating for proper overpressure protection.
Key Benefits- High British Thermal Unit (BTU) Capacity: Rated for up to 1,027,000 BTU/hr, suitable for high-output heating systems.
- ASME Section IV Certified: Ensures compliance with standard safety regulations for hot water heating boilers.
- Corrosion-Resistant Construction: Features a robust bronze body and stainless steel internal components for long-term service in harsh environments.
- Reliable Sealing: Equipped with a silicone seat to prevent weeping and ensure a tight seal after operation.
- Standard Connection Sizes: 3/4" Female NPT connections allow for straightforward integration into existing piping manifolds.
What is the maximum temperature rating for this relief valve?
This valve is rated for a maximum service temperature of 250°F (121°C).
Should I install this valve horizontally or vertically?
To ensure proper operation and drainage, this pressure relief valve must be installed in a vertical, upright position.
How do I size this valve for my boiler?
The BTU/hr rating of the relief valve must equal or exceed the total heat input of the boiler or heat-generating equipment it is protecting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Conbraco 10-418-16 Valve
The Conbraco 10-418-16 Valve is a high-capacity ASME Section IV hot water pressure relief valve engineered for the protection of boilers and hydronic heating systems. Built with a durable bronze body and featuring a 3/4" Female NPT inlet and outlet, this unit is factory-set at 80 PSI to ensure system integrity. With a verified thermal capacity of 1,027,000 BTU/hr, it is designed to handle significant discharge requirements in commercial and residential residential heating applications. The Apollo 10-418 series utilizes a silicone seat to provide a reliable seal and a stainless steel spring for consistent actuation at the specified pressure. This professional-grade HVAC safety valve supports a maximum service temperature of 250°F, making it a standard choice for contractors looking for ASME certified relief valves that meet strict jurisdictional codes. Ensure the 10-418-16 matches your boiler’s output rating for proper overpressure protection.
Key Benefits- High British Thermal Unit (BTU) Capacity: Rated for up to 1,027,000 BTU/hr, suitable for high-output heating systems.
- ASME Section IV Certified: Ensures compliance with standard safety regulations for hot water heating boilers.
- Corrosion-Resistant Construction: Features a robust bronze body and stainless steel internal components for long-term service in harsh environments.
- Reliable Sealing: Equipped with a silicone seat to prevent weeping and ensure a tight seal after operation.
- Standard Connection Sizes: 3/4" Female NPT connections allow for straightforward integration into existing piping manifolds.
What is the maximum temperature rating for this relief valve?
This valve is rated for a maximum service temperature of 250°F (121°C).
Should I install this valve horizontally or vertically?
To ensure proper operation and drainage, this pressure relief valve must be installed in a vertical, upright position.
How do I size this valve for my boiler?
The BTU/hr rating of the relief valve must equal or exceed the total heat input of the boiler or heat-generating equipment it is protecting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
