ClimateMaster S17S0030N02 Thermister

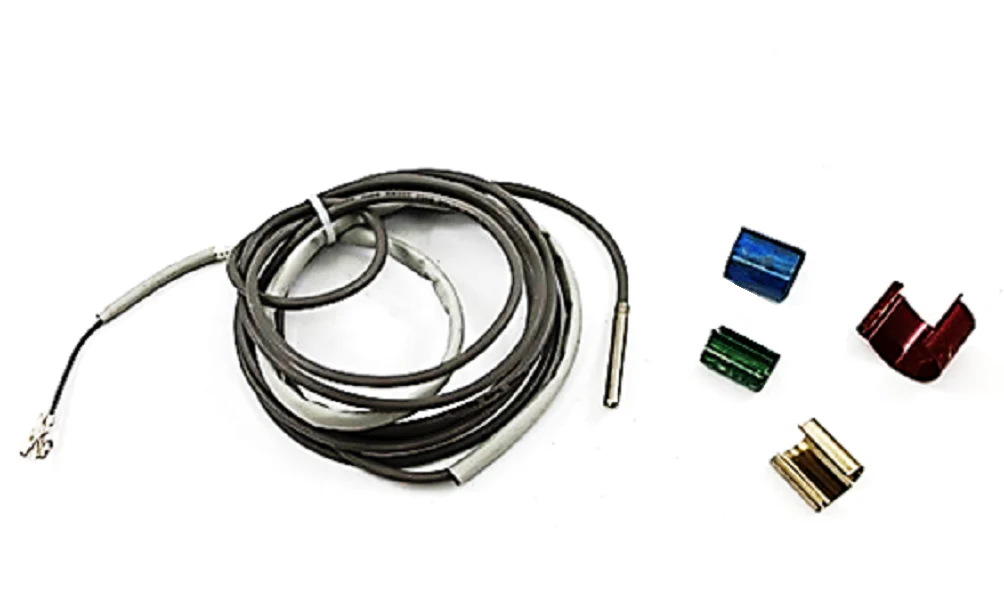

The ClimateMaster S17S0030N02 is a precision NTC thermistor engineered for geothermal and water-source heat pump applications. Featuring a 96-inch gray wire lead, this OEM sensor provides the necessary reach for remote mounting or deep placement within the cabinet or coil assembly. It functions as a critical temperature sensor for HVAC systems, monitoring thermal changes to ensure accurate heat pump diagnostic feedback to the control board. Designed to meet the exact resistance-to-temperature curves required by ClimateMaster CXM and DXM controllers, it prevents nuisance trips and ensures optimal refrigerant flow regulation. The ClimateMaster replacement parts catalog specifies this thermistor for its durability in high-moisture environments typical of evaporator and condenser configurations. As a geothermal HVAC sensor, it facilitates precise HVAC part compatibility for technicians troubleshooting sensor drift or open circuits in the field. This 10k ohm sensor is a reliable solution for maintaining system equilibrium and operational efficiency.
Key Benefits
- 96-Inch Lead Length: Provides ample slack for complex routing in large-chassis geothermal units.
- Gray Wire Coding: Matches OEM wiring schematics for rapid identification and error-free HVAC sensor installation.
- High Accuracy Resistance: Calibrated to provide consistent data to the microprocessor, preventing thermostat sensor troubleshooting complications.
- Robust Insulation: The gray jacket offers enhanced protection against abrasion and vibration within the mechanical compartment.
Common Questions
What are the failure symptoms of a ClimateMaster S17S0030N02 sensor?
Technicians typically observe "Low Pressure" or "High Pressure" lockout codes on the CXM board when the thermistor fails or experiences significant resistance drift, often caused by moisture ingress or wire fatigue.
Is this thermistor compatible with non-ClimateMaster units?
While primarily designed for ClimateMaster, it may serve as a replacement in water-source heat pump brands that utilize the same 10k Type III thermistor curve and physical connector style.
How do I test the ClimateMaster 96-inch thermistor?
Disconnect the sensor from the board and use a multimeter to measure resistance (ohms). Compare the reading against the standard ClimateMaster temperature-resistance chart to verify it is within the specified tolerance for the current ambient temperature.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
