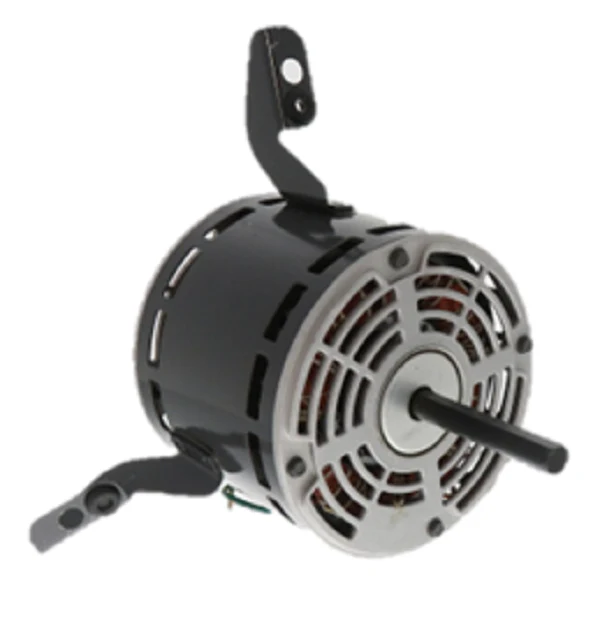

ClimateMaster S14S0003N04 Motor
The ClimateMaster S14S0003N04 is a direct-drive PSC replacement motor engineered for high-static water-source heat pump (WSHP) applications. This 460V single-phase motor delivers 1/3 HP at a rated speed of 1075 RPM, providing the torque required to maintain consistent airflow across geothermal or boiler-tower circuits. Designed with a 3-speed configuration (high, medium, low), it allows technicians to fine-tune CFM delivery to meet specific air-side pressure drops and ensure optimal heat exchange. This genuine ClimateMaster blower motor features a durable MTR enclosure to resist moisture and dust, common in heavy-duty commercial HVACR environments. The motor is built for 60Hz operation and integrates seamlessly with existing fan relay boards using standard spade terminal connections. Reliability and thermal protection are prioritized to prevent winding burnout during extended run cycles in demanding industrial interior zones.
Key Benefits:- Multi-Speed Versatility: The 3-speed tap design allows for precise balancing of the fan blower assembly to meet system design specifications.
- High-Voltage Efficiency: Optimized for 460V 1ph electrical systems, reducing amperage draw and heat generation during continuous operation.
- Direct OEM Compatibility: Ensures exact fit and function for ClimateMaster S14S0003N04 replacements, eliminating the need for mounting bracket modifications.
- Robust MTR Enclosure: Designed to protect internal components from the environmental stressors typical of mechanical rooms and industrial HVAC units.
What is the frame size and mounting for this motor?
This motor typically utilizes a standard NEMA 48 frame with torsion flex or belly-band mounting, making it compatible with most ClimateMaster blower housings designed for 1/3 HP applications.
Can I use this as a replacement for a 208/230V motor?
No. The S14S0003N04 is specifically wound for 460V 1ph power sources. Applying lower voltage will result in motor failure and potential damage to the control circuit.
Does this motor include the run capacitor?
The run capacitor is usually sold separately. Always check the motor nameplate for the required MFD/VAC rating when installing a new PSC motor to ensure proper phase shift and starting torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $503.77
-65%$503.77
$176.32ClimateMaster S14S0003N04 Motor
The ClimateMaster S14S0003N04 is a direct-drive PSC replacement motor engineered for high-static water-source heat pump (WSHP) applications. This 460V single-phase motor delivers 1/3 HP at a rated speed of 1075 RPM, providing the torque required to maintain consistent airflow across geothermal or boiler-tower circuits. Designed with a 3-speed configuration (high, medium, low), it allows technicians to fine-tune CFM delivery to meet specific air-side pressure drops and ensure optimal heat exchange. This genuine ClimateMaster blower motor features a durable MTR enclosure to resist moisture and dust, common in heavy-duty commercial HVACR environments. The motor is built for 60Hz operation and integrates seamlessly with existing fan relay boards using standard spade terminal connections. Reliability and thermal protection are prioritized to prevent winding burnout during extended run cycles in demanding industrial interior zones.
Key Benefits:- Multi-Speed Versatility: The 3-speed tap design allows for precise balancing of the fan blower assembly to meet system design specifications.
- High-Voltage Efficiency: Optimized for 460V 1ph electrical systems, reducing amperage draw and heat generation during continuous operation.
- Direct OEM Compatibility: Ensures exact fit and function for ClimateMaster S14S0003N04 replacements, eliminating the need for mounting bracket modifications.
- Robust MTR Enclosure: Designed to protect internal components from the environmental stressors typical of mechanical rooms and industrial HVAC units.
What is the frame size and mounting for this motor?
This motor typically utilizes a standard NEMA 48 frame with torsion flex or belly-band mounting, making it compatible with most ClimateMaster blower housings designed for 1/3 HP applications.
Can I use this as a replacement for a 208/230V motor?
No. The S14S0003N04 is specifically wound for 460V 1ph power sources. Applying lower voltage will result in motor failure and potential damage to the control circuit.
Does this motor include the run capacitor?
The run capacitor is usually sold separately. Always check the motor nameplate for the required MFD/VAC rating when installing a new PSC motor to ensure proper phase shift and starting torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
