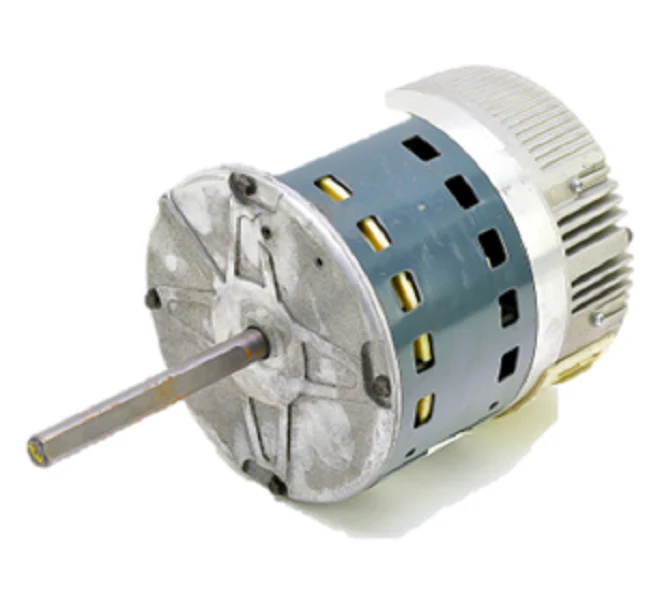

ClimateMaster S14S0002N02 Motor Assembly
The ClimateMaster S14S0002N02 is a professional-grade ECM motor assembly designed for high-efficiency operation in water-source heat pump systems. This assembly features an integrated ECM motor with control module, providing precise variable speed adjustments to maintain optimal static pressure and airflow across the air coil. By utilizing brushless DC motor technology, the S14S0002N02 significantly improves system EER and COP ratings compared to standard PSC alternatives. As a genuine ClimateMaster replacement part, it ensures seamless communication with the DXM or CXM controller boards, allowing for advanced diagnostics and fault code monitoring. The programmable motor module is factory-configured to match the specific torque and CFM requirements of compatible Tranquility series units. This assembly is critical for restoring proper HVAC blower motor function, ensuring quiet startup and consistent air distribution in demanding commercial or residential geothermal applications.
- Variable Speed Precision: Integrated ECM control module automatically adjusts RPM to compensate for duct restriction and filter loading.
- Direct OEM Compatibility: Engineered as a drop-in S14S0002N02 motor assembly to match factory electrical and mounting specifications.
- Enhanced Efficiency: Reduces power consumption at partial loads, contributing to lower overall operating costs for the geothermal system.
- Quiet Operation: Soft-start technology eliminates the abrupt noise and mechanical stress associated with traditional induction motors.
Common Questions
How do I verify if the motor or the control module has failed?
Technicians should use an ECM motor tester to isolate the module from the motor windings. Check for 24VAC signals from the control board at the 16-pin connector and verify high-voltage power at the 5-pin power connector before condemning the assembly.
Is the S14S0002N02 module pre-programmed?
Yes, this programmed ECM motor arrives with the specific airflow parameters required for the designated ClimateMaster model, eliminating the need for field programming using an external tool.
What are the symptoms of a failing blower motor assembly?
Common indicators include "hunting" (revving up and down), failure to start despite receiving a call for fan (G signal), or an "Airflow Fault" (Code 10) on the DXM2 diagnostic display.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
