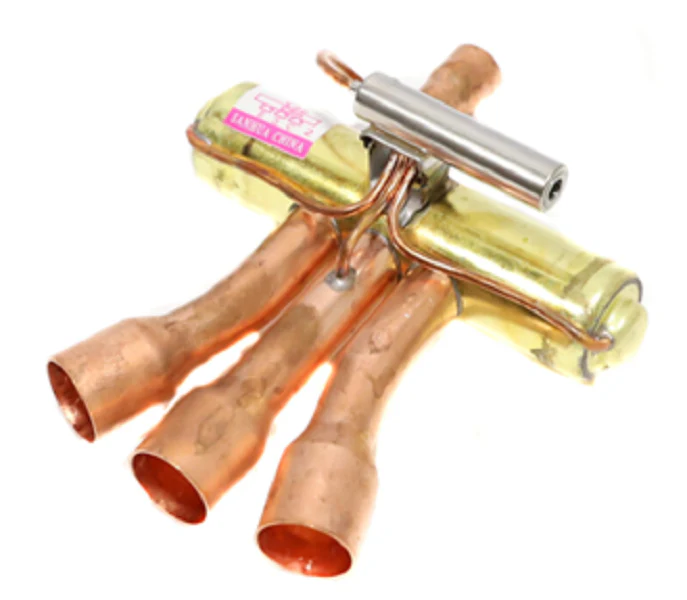

ClimateMaster 69173500 Valve
The ClimateMaster 69173500 Reversing Valve is a critical 4-way refrigeration component designed for 3-ton water-source heat pump systems. Engineered for precision refrigerant flow reversal, this OEM ClimateMaster part allows the system to transition seamlessly between heating and cooling cycles by redirection of high-pressure gas. This specific model is a reversing valve without coil, featuring a 3/4-inch suction connection and 1/2-inch discharge/condenser connections, ensuring high-flow capacity and minimal pressure drop across the internal slide mechanism.
For field technicians, the ClimateMaster 69173500 is the standard replacement for correcting "stuck" valves or internal bypass issues that lead to low discharge-to-suction pressure differentials. Its robust brass body construction is built to withstand the rigorous cycling of geothermal and water-loop applications. When performing a heat pump reversing valve replacement, ensure the system is fully recovered and use a heat sink or wet rag during brazing to protect the internal seals from temperature damage. This HVAC reversing valve is compatible with 24V solenoid coils (sold separately) and is calibrated for R-410A and R-22 refrigerant architectures typical in legacy and modern Tranquility series units.
Key Benefits- Precision Refrigerant Control: The 4-way sliding "canoe" design ensures a tight seal, preventing internal bypass and maximizing compressor efficiency.
- Direct OEM Fit: Guaranteed mechanical compatibility with ClimateMaster 3-ton heat pumps, eliminating the need for pipe re-configuration in tight cabinets.
- Durability: High-grade brass and stainless steel internal components resist corrosion and scaling in high-duty cycle environments.
- Serviceability: Designed for standalone installation, allowing the reuse of existing 24V solenoids if the electrical circuit remains intact.
How do I diagnose a failing ClimateMaster 69173500 valve?
Technicians should perform a "touch test" on the four refrigerant lines. If the temperature differential between the suction line from the evaporator and the suction line to the compressor is more than 3-5 degrees, the valve is likely leaking internally or stuck in a mid-position.
Does this valve include the solenoid coil?
No, this is the reversing valve body only. If your diagnosis indicates an electrical failure (no 24V magnetic pull), you must purchase the solenoid coil separately or reuse the functioning coil from the previous assembly.
What causes these valves to get stuck?
The most common causes are physical contaminants in the refrigerant lines, low system pressure preventing a full shift, or overheating the valve body during the initial installation brazing process.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
