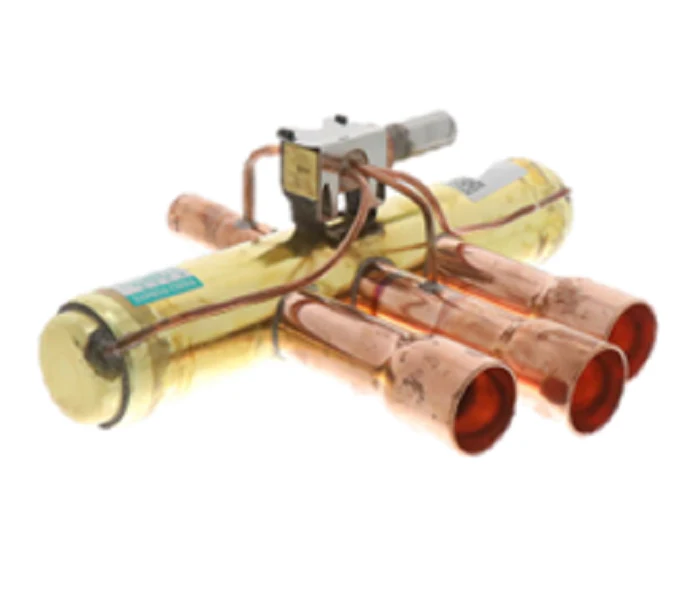

ClimateMaster 69172601 Reversing Valve
The ClimateMaster 69172601 Reversing Valve is a critical 4-way pilot-operated component engineered for high-capacity heat pump refrigerant flow management. Designed specifically for geothermal water source heat pumps and large-scale commercial HVAC systems, this 6-ton reversing valve provides the mechanical switching required to transition a DX system between heating and cooling cycles. This specific SKU is often identified in technical manuals as a ClimateMaster OEM replacement part, ensuring precise port alignment and pressure drop characteristics that match original factory specifications. This valve is supplied without a solenoid coil, allowing technicians to retain an existing functional coil or pair it with a new 24V or 120V actuator depending on the field control voltage requirements. The robust sliding block mechanism is built to handle the rigorous pressure differentials found in high-efficiency water-to-air heat pump components, mitigating issues like internal bypassing or stuck slides that degrade system SEER and EER ratings.
Key Benefits
- 6-Ton Capacity: Engineered for heavy-duty commercial and high-tonnage residential geothermal applications.
- OEM Compatibility: Guaranteed fit for ClimateMaster units, eliminating the need for extensive piping modifications during field reversing valve troubleshooting.
- Precision Flow Control: Minimizes refrigerant pressure drop across ports, maintaining optimal system efficiency during peak load conditions.
- Durable Construction: Built to withstand high-cycle rates and professional-grade HVAC reversing valve replacement standards.
- Flexibility: The "w/o coil" configuration allows for versatile integration with various solenoid voltages (separate purchase may be required).
Common Questions
Does this valve include the solenoid coil used for activation?
No, the 69172601 is the valve body only. If your diagnostic shows a failed electromagnetic coil rather than a mechanical slide failure, you will need to source the coil separately or reuse the existing one if compatible.
What are the symptoms of a failing 6-ton reversing valve?
Common indicators include "short-cycling" where the system fails to maintain the requested mode, excessive noise during reversal, or a temperature differential across the valve ports indicating an internal refrigerant leak or "stuck" slide.
Is this part compatible with non-ClimateMaster systems?
While reversing valves are sized by tonnage and port diameters, this part is specifically indexed for ClimateMaster's internal geometry. Always verify port sizes and flow direction before attempting to cross-reference with other heat pump brands.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
