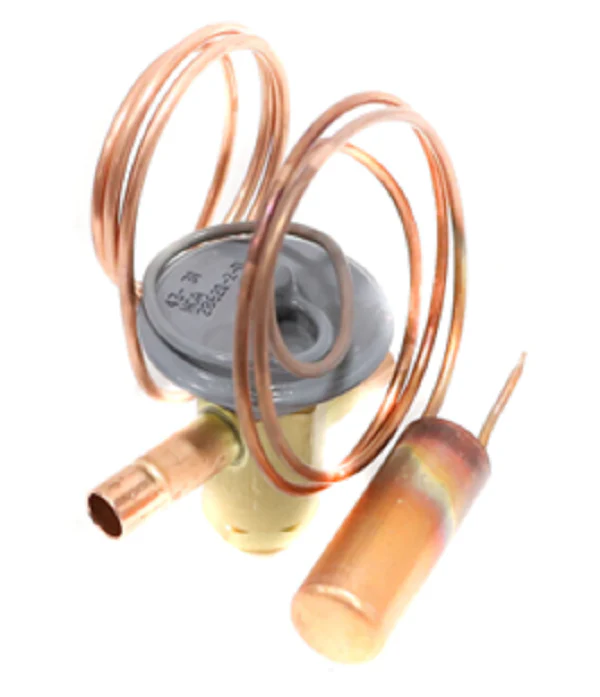

ClimateMaster 33B0002N09 TXV Valve
As a veteran HVACR technician, you know that precise refrigerant metering is non-negotiable for system longevity, especially in water-source heat pump applications. The ClimateMaster 33B0002N09 TXV Valve is an OEM thermal expansion valve designed to replace internal components in ClimateMaster heat pump and air conditioning units. This TXV Valve is critical for modulating liquid refrigerant flow into the evaporator coil, utilizing high-grade brass and copper construction to withstand the thermal stresses of year-round operation. By sensing the superheat at the suction line outlet through its capillary tube and bulb, it ensures the evaporator is fully utilized without risking liquid slugging in the compressor.
Installation requires a professional focus on the refrigerant flow control dynamics of the specific circuit. When swapping this out, ensure the sensing bulb is mounted at the 4 or 8 o’clock position on a horizontal run and properly insulated to prevent ambient air interference. This ClimateMaster 33B0002N09 is a direct replacement part, ensuring compatibility with factory mounting points and balancing the pressure across the system during the cooling or heating cycle. Using a genuine ClimateMaster replacement part maintains the original heat transfer efficiency and SEER/EER ratings of the equipment.
Key Benefits
- Precise Superheat Control: Maintains consistent refrigerant flow control to protect the compressor and optimize evaporator efficiency.
- OEM Engineering: Specifically calibrated for ClimateMaster heat pump systems to ensure seamless drops-in without needing field modifications.
- Durable Infrastructure: Rugged brass and copper body designed for the high-pressure environments typical of geothermal and water-source units.
- Energy Efficiency: Improves overall HVAC cooling performance by preventing flood-back and starving of the coil.
Common Questions
What are the symptoms of a failing ClimateMaster TXV?
Technicians usually see frost on the evaporator coil, high suction pressure with low superheat, or the system effectively "hunting" for the right pressure balance. If the valve is stuck closed, you'll see a sharp drop in suction pressure or a complete pump down.
Where should the sensing bulb be placed for this specific valve?
The bulb must be placed upstream of the equalizer line on a horizontal suction line. Ensure it is clean of oxidation and tightly secured with a copper strap before applying insulation.
Is the 33B0002N09 compatible with R-410A systems?
Yes, this thermal expansion valve is engineered to handle the higher operating pressures of R-410A refrigerant commonly found in modern ClimateMaster residential and commercial series.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
