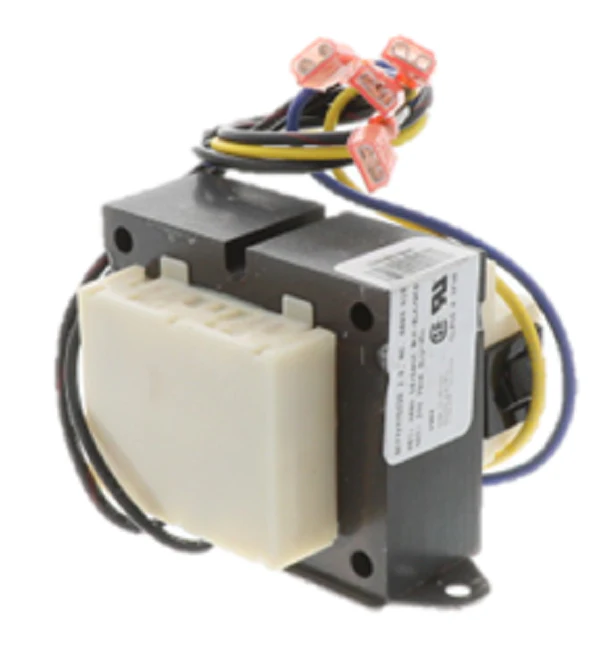

ClimateMaster 15B0002N05 Transformer
The ClimateMaster 15B0002N05 Transformer is a heavy-duty, industrial-grade 75VA 480V-24V transformer designed specifically for the rigorous demands of geothermal heat pump control circuits. Engineered to deliver a stable 24V secondary output from a high-voltage 480V source, this component is critical for powering the internal control board, 24V contactors, and ECM blower motor logic in large commercial HVAC units. Unlike lower-rated units that may struggle under the inductive load of multiple relays and solenoids, this 75VA control transformer provides the consistent current capacity necessary to prevent voltage drops that cause intermittent system locking or erratic operation.
For technicians in the field, this OEM ClimateMaster replacement part ensures simplified installation with standard mounting and lead configurations found in Trilogy and Tranquility series units. Its robust design focuses on thermal stability and effective heat dissipation, making it ideal for continuous duty cycles in high-ambient electrical cabinets. When troubleshooting "no power" issues at the thermostat or control board in 480V systems, verify the secondary output and primary winding resistance; replacing a failing unit with this specific HVAC voltage converter preserves the integrity of the secondary low-voltage circuit and protects sensitive diagnostic components from power fluctuations.
Key Benefits- Stable Control Voltage: Steps down 480V primary to a clean 24V secondary for reliable signaling to diagnostic boards and sensors.
- Increased Current Headroom: The 75VA rating provides significant capacity for powering auxiliary heat relays and multi-stage contactors without overheating.
- Optimized Compatibility: Direct fit for ClimateMaster geothermal systems, ensuring matched electrical characteristics for OEM-specified performance.
- Industrial Durability: Built to withstand the vibration and thermal stress common in commercial HVAC and water-source heat pump applications.
Can I use a 40VA transformer to replace this 75VA model?
No. Using a lower VA rating will likely cause the transformer to overheat or fail when all system components (relays, valves, and boards) are energized simultaneously. This 75VA 480V-24V transformer is required to handle the specific load profile of your equipment.
Why is my transformer primary getting 480V but the secondary is dead?
This typically indicates an internal thermal fuse has blown or a winding failure due to a downstream short circuit. Always check for 24V common shorts in the wiring before installing the new 15B0002N05 to prevent immediate failure of the replacement part.
Is this compatible with non-ClimateMaster systems?
While designed for ClimateMaster, this is a standard 480V to 24V step-down transformer. Verify the footprint and VA requirements; however, it is specifically stocked for exact-fit replacement in commercial heat pump cabinets.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
