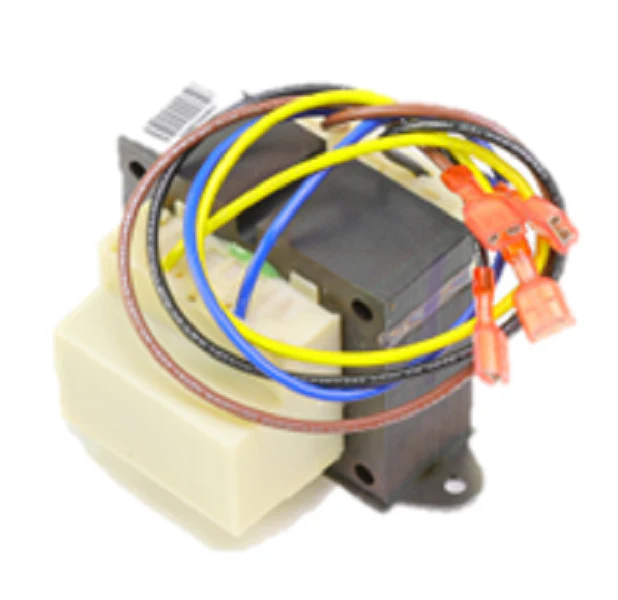

ClimateMaster 15B0002N03 Transformer
The ClimateMaster 15B0002N03 Transformer is a heavy-duty control solution designed for high-performance HVACR applications, specifically engineered for water-source heat pumps and commercial air handlers. This 75VA control transformer features a 277V primary to 24V secondary configuration, providing the robust power required to drive heavy-duty contactors, integrated circuit boards, and advanced thermostats without voltage sag. With a significant 75VA power rating, this unit offers increased headroom compared to standard 40VA or 50VA alternatives, ensuring stable 24V secondary output even during high-inrush events common in ClimateMaster heat pump parts. Built with high-dielectric strength insulation and precision-wound coils, this 277v to 24v HVAC transformer is an essential OEM replacement for maintaining tight-tolerance control logic and preventing board resets or coil dropouts in 277V single-phase commercial power systems.
Key Benefits- High VA Capacity: The 75VA rating supports larger control strings, multiple solenoids, and high-draw contactors without overheating.
- OEM Compatibility: Specifically designed as a direct ClimateMaster 15B0002N03 replacement for seamless integration into existing heat pump control cabinets.
- Stable Voltage Regulation: Maintains a consistent 24V output from a 277V source, protecting sensitive electronics from fluctuations.
- Durable Construction: Heavy-gauge mounting feet and color-coded leads allow for fast, secure installation in tight industrial panels.
Can I use this 75VA transformer to replace a 40VA unit?
Yes. Upgrading to a 75VA transformer is a common practice for technicians as it provides more power capacity, reducing the risk of transformer failure when adding accessories like zoning dampers or smart thermostats.
What are the primary applications for the 15B0002N03?
This HVAC control transformer is primarily utilized in ClimateMaster water-source heat pump units and vertical stack units operating on 277V commercial power circuits.
How do I verify the wiring for this 277V transformer?
Always refer to the specific unit wiring diagram. Typically, the 277V primary leads are connected to the line voltage side, while the 24V secondary provides power to the R and C terminals of the control board.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
