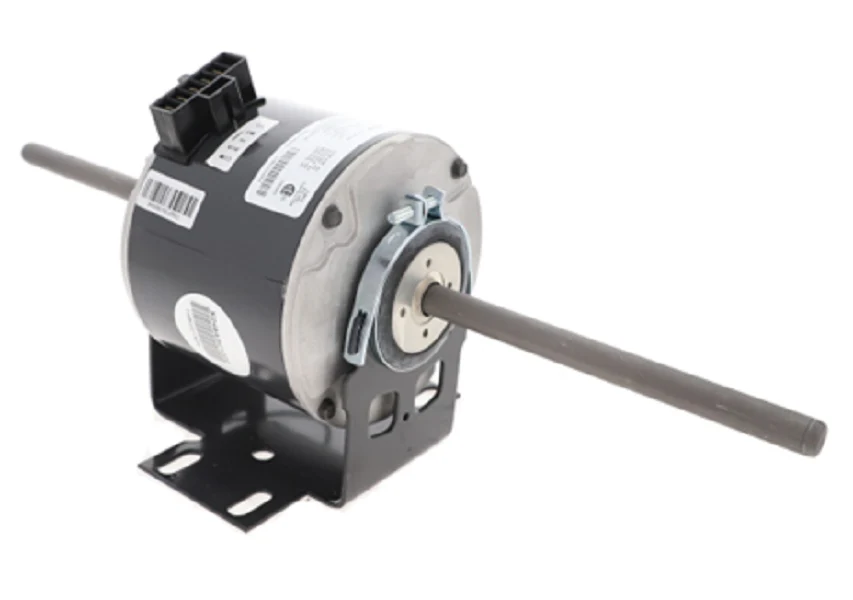

ClimateMaster 14B0021N04 Motor
For service technicians maintaining ClimateMaster water-source heat pumps, the ClimateMaster 14B0021N04 Motor is a critical OEM replacement fan motor designed for high-efficiency air delivery. This 1/20 HP blower motor operates at 208/230V and features a 3-speed configuration, allowing for precise airflow adjustment based on system static pressure requirements. With a rated speed of 1155 RPM and a clockwise (CW) rotation, this PSC motor ensures optimal heat transfer across the DX coil for both heating and cooling cycles.
Engineered with internal thermal overload protection, this 14B0021N04 model provides robust performance in demanding geothermal and water-loop applications. The permanent split capacitor design is optimized for HVAC blower assemblies, offering a compact footprint for easy installation in horizontal or vertical cabinet configurations. When replacing a failed motor, verify the capacitor rating and lead-to-plug compatibility to ensure seamless integration with the existing control board and wiring harness.
Key Benefits- Multi-Speed Flexibility: Features 3-speed taps to match specific ductwork static pressure and CFM requirements.
- OEM Compatibility: Exact ClimateMaster replacement part for guaranteed fit and electrical alignment within Tranquility and Genesis series units.
- Durable Construction: Built for continuous operation in 1/20 HP applications with an 1155 RPM output for consistent ventilation.
- Directional Precision: Fixed clockwise (CW) rotation ensures proper centrifugal blower wheel orientation and performance.
Is the 14B0021N04 motor compatible with 115V systems?
No, this motor is specifically rated for 208/230V single-phase power. Attempting to run this on 115V will result in failure to start or damage to the windings.
Does this motor include the run capacitor?
This is the motor only. It is best practice to replace the run capacitor simultaneously to ensure the new motor maintains its design efficiency and torque.
What ClimateMaster units use this 1/20 HP motor?
This motor is typically found in smaller tonnage water-to-air heat pumps. Always check the specific part number on the existing motor housing to confirm the 14B0021N04 is the correct match.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
