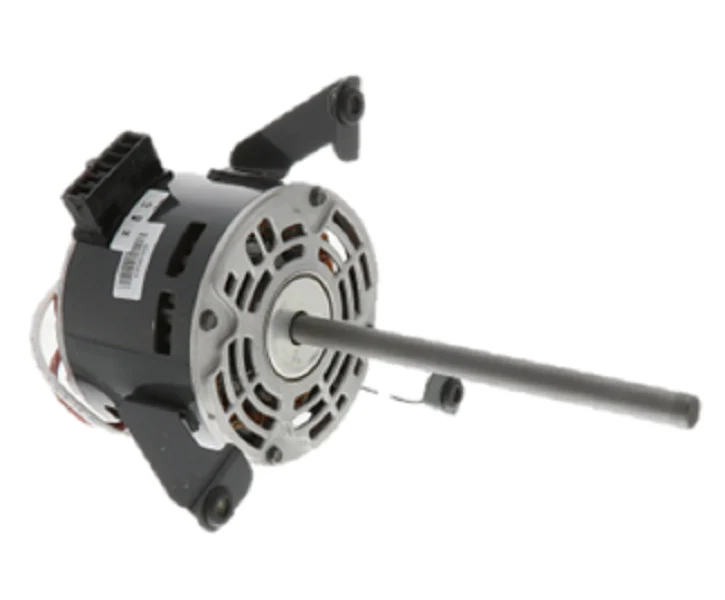

ClimateMaster 14B0016N02 Motor
The ClimateMaster 14B0016N02 Motor is a high-performance OEM blower motor engineered specifically for water-source heat pumps and residential HVAC systems. Operating at a dual-rated voltage of 265/220-240V on a single-phase 60Hz circuit, this 1/30 HP motor provides the precise torque required for consistent airflow in high-demand environments. Its 3-speed configuration allows for adjustable CFM performance, with nominal operating speeds of 890/740 RPM, ensuring that contractors can fine-tune the system for optimal static pressure and quiet operation. Designed for durability and electrical efficiency, this direct drive motor features a robust frame and high-quality internal windings to handle the rigorous duty cycles of geothermal units. For technicians performing a ClimateMaster motor replacement, the 14B0016N02 serves as a drop-in solution that maintains original factory performance standards without the need for field modifications. Using this genuine HVAC blower motor ensures proper integration with existing control boards and capacitor setups, preventing common airflow failures and system lockouts in critical residential or commercial installations.
- Multi-Speed Versatility: Features a 3-speed design (890/740 RPM) to meet various airflow requirements and system static pressure specifications.
- OEM Compatibility: Genuine ClimateMaster replacement ensures a perfect fit for water-source heat pumps, maintaining factory airflow standards.
- Broad Voltage Range: Optimized for 265V and 220-240V single-phase applications, providing flexibility across different electrical infrastructures.
- Quiet Operation: Precision-balanced internals reduce vibration and audible noise during operation, enhancing occupant comfort.
Common Questions
What are the wiring specifications for the three speeds?
The motor uses a standard multi-tap lead system. Always refer to the specific unit wiring diagram on the access panel of your ClimateMaster cabinet to ensure the correct speed taps (High, Medium, Low) are connected to the appropriate relay terminals on the control board.
Can this motor be used in 50Hz applications?
While some OEM motors are dual-rated, this 14B0016N02 model is optimized for 60Hz operation. Running it on 50Hz may alter the RPM and torque characteristics, potentially leading to overheating or insufficient airflow; always check the nameplate data for 50Hz compatibility before installation.
Is a capacitor required for this motor?
Yes, as a permanent split capacitor (PSC) motor, it requires a specific microfarad (MFD) capacitor for proper starting torque and efficiency. It is recommended to replace the run capacitor whenever a new blower motor is installed to prevent premature failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
