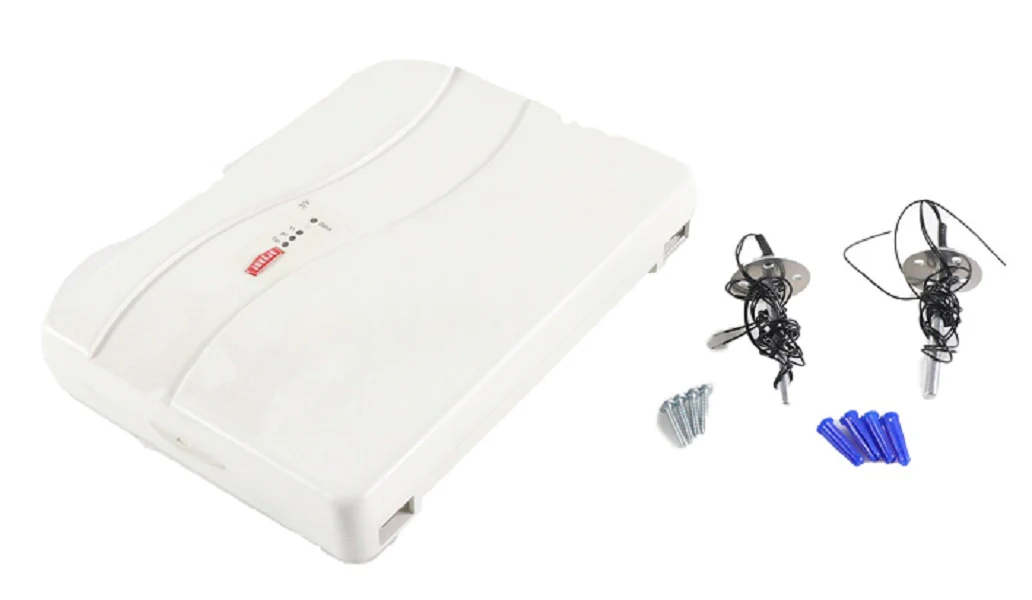

Carrier ZONEBB3ZAC01 Control
The Carrier ZONEBB3ZAC01 3-Zone Control System is a professional-grade solution designed for precise climate management in residential or light commercial applications. Engineered for multi-zone HVAC control, this board supports up to 3-zone 2H/2C systems, offering seamless integration with standard 24V heat pumps, air conditioners, and furnace configurations. This backplate-mounted controller utilizes duct temperature sensors to manage air balancing and prevent coil freeze-up or high-limit trips during low-airflow conditions. For contractors, the Carrier Zone3Z provides a simplified replacement or upgrade path, featuring easy-to-read LED status indicators for system operation, damper positioning, and diagnostic troubleshooting. This panel is compatible with both Carrier 3-zone dampers and most standard 24V thermostats, making it a versatile choice for optimizing airflow management and improving overall system efficiency.
- Multi-Stage Compatibility: Supports up to 2 stages of heating and 2 stages of cooling for precise load matching.
- Integrated Pressure Protection: Built-in logic works with leaving air temperature (LAT) sensors to protect the compressor and heat exchanger.
- Duct Management: Simplifies HVAC zoning by controlling bypass dampers and zone dampers based on individual thermostat demand.
- Flexible Installation: Works with various HVAC equipment brands, provided they follow standard 24V logic.
Common HVACR Contractor Questions:
Does this board require a dedicated transformer?
Yes, it is recommended to use a dedicated 40VA to 75VA 24V transformer to power the Carrier ZONEBB3ZAC01 and connected dampers to avoid overdrawing current from the indoor unit's control circuit.
Can I use this with a heat pump system?
The ZONEBB3ZAC01 is fully compatible with heat pump applications, including those with auxiliary heat strips, ensuring reliable back-up heat control during defrost cycles or high-demand periods.
What type of dampers are compatible with this zone panel?
This panel is designed to work with standard power-open, power-close, or spring-return 24V dampers. Always verify the total VA draw of your damper actuators against the panel's output capacity.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
