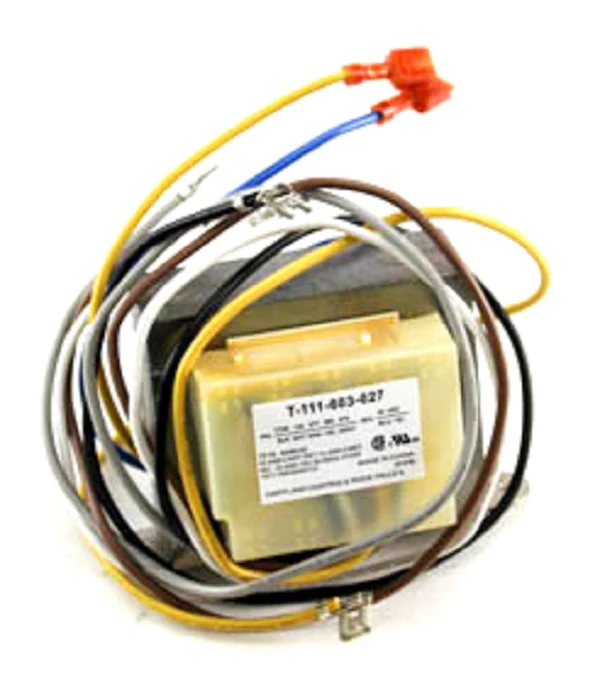

Carrier T111603027 Transformer
The Carrier T111603027 Transformer is a high-capacity, multi-tap power solution designed for heavy-duty HVACR applications. This 75VA control transformer features a versatile primary winding capable of handling 120V, 277V, 380V, and 575V inputs, providing a stable 24V secondary output for control circuits. Engineered for consistency in demanding field conditions, it is a critical component for powering contactors, relays, and solid-state boards in commercial and industrial systems. Its robust 75VA rating ensures sufficient overhead for complex control strings in Carrier, Bryant, and Payne equipment. This OEM replacement transformer is manufactured to precise tolerances to maintain system impedance and protection levels. As a veteren technician knows, verifying the primary tap configuration against the incoming line voltage is essential for proper 24V stabilization. This specific part is designated as Non-Cancelable / Non-Returnable to ensure inventory integrity for critical system repairs.
Key Benefits- Multi-Tap Primary Voltage: Allows for seamless integration into 120V, 277V, 380V, or 575V systems without needing multiple stocked parts.
- High Power Capacity: The 75VA rating supports larger control loads and more complex secondary circuits compared to standard 40VA units.
- Stable 24V Output: Provides precise low-voltage power to sensitive HVAC control boards and 24V thermostats.
- Genuine OEM Reliability: Built to the exact specifications required for Carrier commercial HVAC systems, ensuring proper fit and electrical performance.
What happens if I use the wrong primary tap on this transformer?
Connecting a higher line voltage to a lower voltage tap will result in immediate failure of the secondary windings and potential damage to the control board. Always verify your incoming L1 and L2/Neutral with a multimeter before landing your wires.
Can I replace a 40VA transformer with this 75VA model?
Yes, you can upgrade to a higher VA rating if the physical footprint allows. A higher VA rating means the transformer can handle a larger electrical load, providing a more robust power source for your 24V components.
How do I test if my T111603027 is faulty?
Isolate the transformer and check for continuity across the windings. Under power, verify that the secondary leads are outputting consistent 24-28VAC. If you have primary voltage but no secondary output, the internal thermal fuse or windings have likely failed.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $116.82
-65%$116.82
$40.89Carrier T111603027 Transformer
