Carrier P530-2254 Expansion Valve
The Carrier P530-2254 Expansion Valve is a factory-authorized OEM thermostatic expansion valve (TXV) designed for precise refrigerant metering in R-22 systems. Engineered for 2.5 to 4-ton capacity units, this valve utilizes balance ported construction to maintain stable superheat across varying head pressures, making it an essential component for high-performance air conditioning and heat pump applications. Its bi-metal composition and externally adjustable superheat allow for field-specific tuning, ensuring the evaporator remains fully active without risking liquid slugging to the compressor.

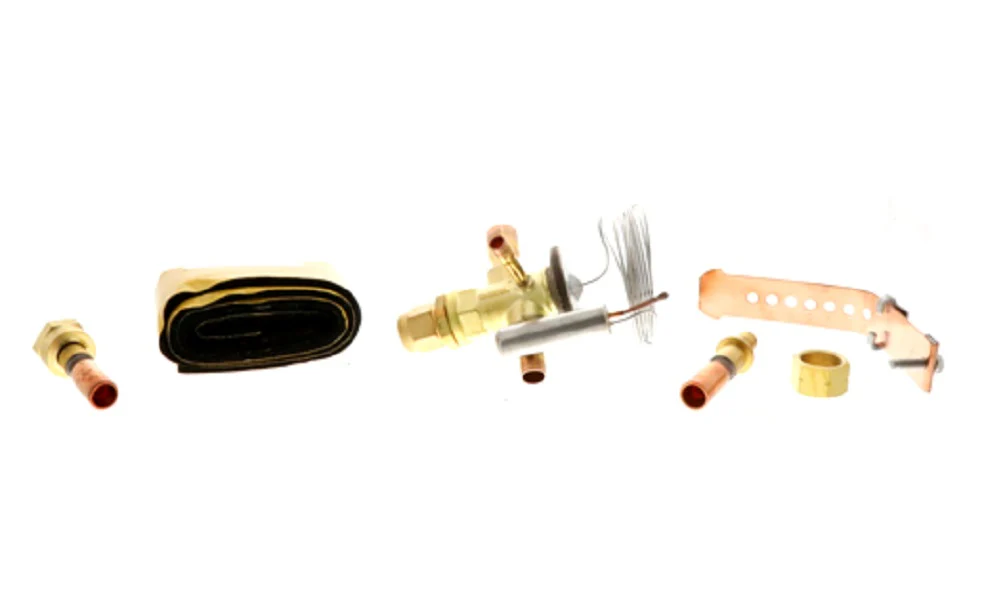

This universal TXV kit includes multiple connection options, including ODF, Chatleff, and Aeroquip, providing the versatility needed for seamless integration with both copper and aluminum evaporator coils. With a maximum working pressure of 610 PSIG and external equalization (1/4"), it provides the reliability required for legacy system maintenance and performance optimization. For technicians, the inclusion of 35” foam insulating tape and clear cross-reference data on the packaging ensures a professional installation and reduced vehicle inventory overhead.
Key Benefits
- Optimized R-22 Performance: Specifically calibrated for R22 refrigerant systems, ensuring accurate flow control and improved seasonal efficiency.
- Broad Compatibility: Rated for 2.5 to 4-ton applications, reducing the need to carry multiple single-capacity valves.
- Versatile Kit Contents: Equipped with ODF, Chatleff, and Aeroquip fittings to accommodate diverse system configurations.
- Enhanced System Protection: Integrated check valve functionality for heat pump compatibility and precise superheat maintenance.
- Durable Construction: Features balance ported design to handle wide-ranging load conditions while maintaining a consistent TXV metering profile.
Common Questions
Is the P530-2254 compatible with R-410A systems?
No, this valve is strictly engineered for R-22 refrigerant. Using it with R-410A will lead to incorrect metering and potential system failure due to pressure differences.
Does this kit include a hard start kit?
This is a non-bleed style valve. If the outdoor unit utilizes a reciprocating compressor, the installation of a hard start kit is highly recommended to ensure reliable starting against the pressure differential.
Where should the sensing bulb be mounted?
The sensing bulb must be securely clamped to the suction line, preferably in the 10 o'clock or 2 o'clock position on a horizontal run, at least 4 inches from the braze connection to avoid thermal interference.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
