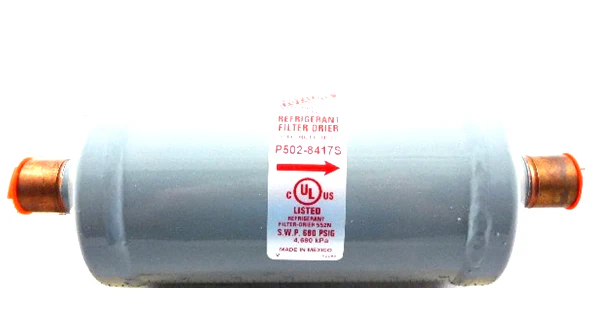

Carrier P502-8417S Filter Drier
The Carrier P502-8417S Filter Drier is a high-capacity liquid line filter drier designed for demanding HVACR applications. Engineered with a 41 cubic inch compacted bead core, this unit features a 7/8" ODF sweat connection for seamless integration into high-performance refrigeration circuits. The desiccant blend, composed of 75% molecular sieve and 25% activated alumina, provides superior moisture and acid removal, ensuring the longevity of the compressor and expansion valves. This factory authorized part is rated for a maximum working pressure of 680 PSIG, making it a reliable OEM replacement filter drier for systems utilizing CFC, HCFC, and HFC refrigerants. A fine 20-micron outlet pad serves as the final stage of filtration, capturing solid contaminants and debris before they can compromise system efficiency. For technicians performing routine maintenance or system repairs, the P502-8417S offers the structural integrity of a painted steel shell and solid copper fittings to withstand harsh operational environments.
Key Benefits- Maximum Filtration: Features a 20-micron outlet pad to prevent particulate matter from clogging thermal expansion valves.
- High Acid Capacity: The activated alumina blend effectively neutralizes corrosive acids formed by moisture and heat.
- OEM Compatibility: Designed specifically for Carrier, Bryant, and Payne equipment to maintain original factory specifications.
- Robust Construction: Built with a durable steel shell and extended copper leads for easier brazing during installation.
- Universal Refrigerant Use: Fully compatible with modern HFCs as well as legacy CFC and HCFC refrigerants.
Is the Carrier P502-8417S bi-directional?
No, this is a uni-flow liquid line drier. It must be installed with the flow arrow pointing toward the expansion device to ensure the internal 20-micron filter performs correctly.
What is the desiccant volume of this unit?
This model contains 41 cubic inches of desiccant beads, providing significantly higher moisture holding capacity than standard 16 or 30 cubic inch driers.
Can this drier be used for system burnouts?
While it has high acid capacity due to the activated alumina, for severe motor burnouts, a dedicated high-acid suction line drier is typically recommended alongside a liquid line drier like the P502-8417S.
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
