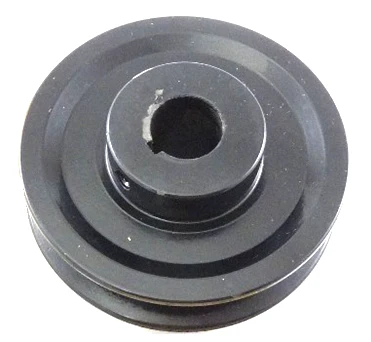

Carrier P461-3708 Motor Pulley
The Carrier P461-3708 Motor Pulley is a high-grade cast iron sheave designed for precise airflow adjustment and power transmission in commercial and residential HVAC systems. Featuring a 7/8 inch bore (0.875") and a 4.25 inch outer diameter, this variable pitch pulley allows technicians to fine-tune the drive ratio by adjusting the pitch diameter between 2.8 inches and 3.8 inches. This adjustable motor sheave is a critical OEM replacement part for ensuring optimal belt tension and reducing slippage, which prevents premature wear on V-belts and motor bearings. Built to withstand high-torque applications, the P461-3708 is compatible with a wide range of Carrier, Bryant, and Payne units, including the 50ZL and 40RU series. For professional installation, ensure the set screw is seated firmly on the motor shaft keyway to maintain balance and prevent vibration. Use this HVAC blower pulley to maintain the exact static pressure and CFM requirements specified for the air handler or furnace.
Key Benefits- Variable Pitch Design: Provides a flexible 2.8" to 3.8" pitch diameter for precise fan speed adjustment and system balancing.
- Durable Cast Iron Construction: High radial strength ensures longevity and heat dissipation under heavy industrial HVAC loads.
- Precision Machined Bore: Standard 7/8" shaft size with integrated keyway provides a secure, concentric fit to Carrier NCO series motors.
- Optimized Efficiency: Reduces energy consumption by maintaining consistent belt alignment and minimizing friction loss.
- How do I adjust the speed on this pulley? Loosen the set screw on the adjustable half of the sheave and rotate it clockwise to increase the pitch diameter (increasing fan speed) or counter-clockwise to decrease it (lowering fan speed).
- What belt type is compatible with the P461-3708? This is a single-groove pulley designed for standard 4L or A-section V-belts. Always verify the belt profile matches the sheave groove for maximum power transfer.
- When should I replace my motor pulley? Replace the pulley if you notice "shining" or deep grooves in the sheave walls, which indicate wear that leads to belt slipping and increased noise.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
