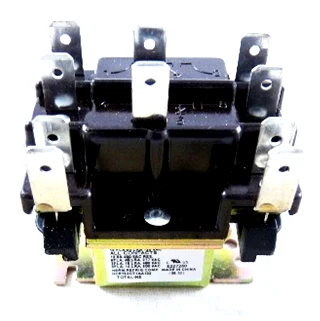

Carrier P283-0341 Power Relay
The Carrier P283-0341 Power Relay is a heavy-duty, field-proven switching solution designed specifically for demanding HVACR applications. Engineered for Carrier, Bryant, and Payne equipment, this 2-pole fan relay utilizes a 110/120V AC coil to effectively manage high-voltage circuits in air handlers and furnaces. With a contact rating of up to 15 Amps at 120V, it provides the electrical capacity required for blower motor switching and general-purpose sequence control. The DPST (Double Pole Single Throw) or DPDT (Double Pole Double Throw) configuration, depending on specific wiring iterations, ensures reliable circuit isolation and performance in high-cycle environments. Technicians often favor the P283-0341 for its HVAC OEM relay specifications, which guarantee precise fitment and terminal alignment, reducing field installation time during furnace relay replacement. This Totaline P283-0341 component is built to withstand the resistive and inductive loads typical of residential climate control systems, maintaining low-voltage coil relay integrity across wide temperature variances.
Key Benefits:
- Specifically engineered for Carrier P283-0341 compatibility in 120V residential furnace and fan coil assemblies.
- Robust 15A contact rating ensures reliable HVAC power relay performance under significant electrical loads.
- Standardized 1/4-inch male quick-connect terminals for streamlined technician installation and troubleshooting.
- Versatile application use for blower fan control, heating sequences, and general circuit switching.
- Dual-pole design provides enhanced circuit management and secondary control capabilities within the HVAC system.
Common Questions:
What are the coil voltage requirements for this relay?
The P283-0341 is designed with a 110V/120V AC coil. Always verify your control board or transformer output before installation to prevent coil burnout.
Can I use this relay to replace a 24V coil relay?
No, this model requires a 120V signal to energize. If your system utilizes a 24V control circuit, you must use the appropriate 24V alternative, such as the P283-0293.
Will this work with other brands besides Carrier?
While designed for Carrier-family brands (Bryant, Payne, Totaline), this is a universal HVAC relay for any 120V application requiring similar amperage and terminal configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
