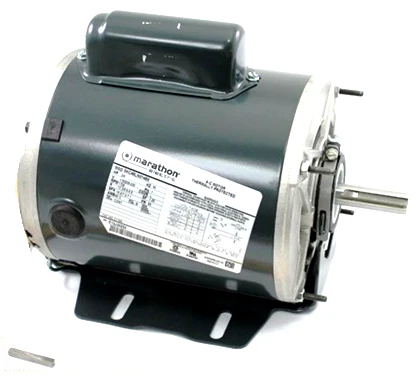

Carrier P267-C1156 Blower Motor
The Carrier P267-C1156 is a professional-grade 3/4 HP HVAC blower motor designed for high-performance air handling and furnace applications. Built with a NEMA 56R frame, this open air-over (OAO) motor utilizes a permanent split capacitor (PSC) design to maintain high operational efficiency while ensuring reliable torque across varying static pressures. Engineered for versatility, it operates on a multi-voltage configuration of 115/208-230V and runs at a nominal 1075 RPM. As a genuine Carrier replacement motor, it features Class B insulation and thermal overload protection to prevent winding failure during heavy duty cycles. This single-phase blower motor is a direct drop-in for technicians servicing residential and light commercial air handlers, providing the specific electrical characteristics required to match original equipment manufacturer (OEM) performance standards and airflow requirements.
Key Benefits
- Multi-Voltage Compatibility: Supports 115V or 208-230V configurations for broader application across different HVAC platforms.
- Robust 56R Frame: Features a resilient mounting base and standard shaft dimensions for a precise fit in Carrier, Bryant, and Payne units.
- High Thermal Rating: Equipped with internal thermal protection to safeguard the 3/4 HP motor from overheating under high-load conditions.
- Reversible Rotation: Simplifies inventory by allowing technicians to adjust rotation to meet specific air handler configurations.
Common Questions
What capacitor is required for the Carrier P267-C1156?
This 3/4 HP PSC motor typically requires a 10 MFD / 370V run capacitor; always verify the rating on the motor nameplate during installation.
Can this motor replace a lower horsepower rated motor?
While a 3/4 HP motor can sometimes replace a 1/2 HP motor if dimensions allow, it is critical to ensure the 1075 RPM and NEMA 56R frame alignment match to prevent system imbalance.
Is this motor suitable for outdoor condenser use?
No, the Carrier P267-C1156 is an open air-over (OAO) motor designed for indoor air handlers where the airstream provides necessary cooling; it is not rated for exposure to rain or debris.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
