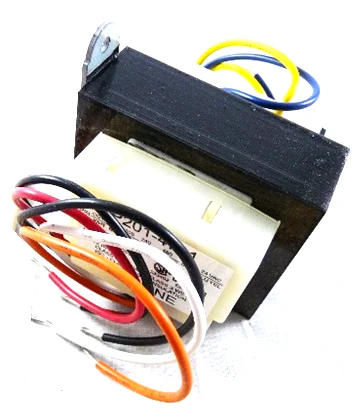

Carrier P201-4701 Transformer
The Carrier P201-4701 Transformer is a heavy-duty 75VA solution engineered for commercial and residential HVACR control circuits requiring reliable voltage step-down. This multi-tap primary transformer supports 120V, 208V, 240V, and 480V inputs, providing a stable 24V secondary output at 50/60Hz. Designed as a direct OEM replacement transformer for Carrier, Bryant, and Payne equipment, it ensures precise low-voltage power conversion for contactors, thermostats, and integrated circuit boards. The 75VA rating offers a significant power buffer compared to standard 40VA units, making it ideal for systems with high-draw accessories like smart thermostats or multiple zone dampers. Built with high-grade laminations to minimize HVAC transformer humming and heat dissipation issues, the P201-4701 provides the durability needed for the rigorous duty cycles of modern high-efficiency cooling and heating systems. Whether you are performing a 24V control circuit repair or upgrading an underpowered transformer, this unit delivers the robust electrical performance required by professional contractors.
Key Benefits for HVACR Technicians:- Universal Voltage Compatibility: Multi-tap primary leads (120/208/240/480V) allow for a single truck stock item to cover almost any field application.
- Enhanced Power Capacity: The 75VA power rating prevents voltage drops and overheating in circuits with modern digital controls.
- Stable 24V Output: Ensures consistent 24VAC for sensitive electronics, reducing the risk of "chattering" contactors or intermittent thermostat reboots.
- Direct OEM Fit: Replaces Totaline and Carrier part numbers P201-4701 and HCTY08H2AF05102 without mounting modifications.
What causes an HVAC transformer like the P201-4701 to fail?
Most failures result from a short circuit in the 24V secondary side, often caused by a grounded thermostat wire or a failing contactor coil. Overloading the VA rating with too many accessories can also lead to thermal breakdown over time.
Can I use a 75VA transformer to replace a 40VA unit?
Yes. Upgrading to a higher VA rating is a common best practice when adding smart thermostats or zone controllers, as it provides more current capacity while maintaining the required 24V output.
How do I identify the correct primary tap for my installation?
Always measure the incoming line voltage with a multimeter before wiring. Connect the common and the specific lead corresponding to your measured voltage (e.g., the 240V lead for residential split systems) while capping off all unused primary wires to prevent shorting.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
