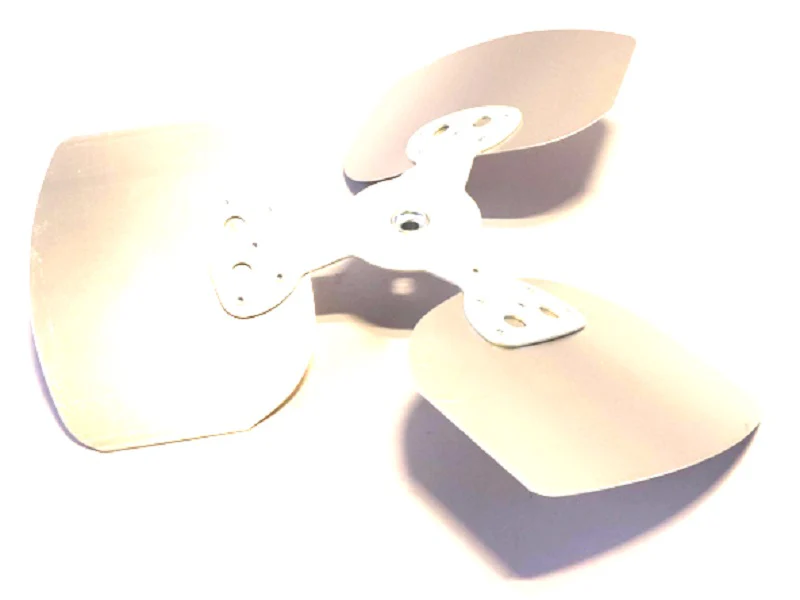

Carrier LA680522 Fan Blade
The Carrier LA680522 Fan Blade is a critical OEM replacement condenser fan engineered for high-efficiency thermal transfer in residential and light commercial HVAC systems. This industrial-grade axial impeller features a 22-inch diameter and a precise 24-degree pitch, designed to move maximum cubic feet per minute (CFM) while maintaining low static pressure. Constructed with three reinforced blades, this component is balanced to eliminate vibration-related stress on the motor bearings and mounting brackets. The Counter Clock-Wise (CCW) rotation, as viewed from the discharge side, ensures standard airflow direction for various Carrier, Bryant, and Payne condensing units. Equipped with a 1/2-inch bore, it facilitates a secure friction-fit on the motor shaft, preventing slippage during high-torque startups. This hard-to-find part is essential for technicians performing maintenance on older 5-ton or high-tonnage package units where maintaining technical fan blade specifications is non-negotiable for system longevity.
Key Benefits:
- Direct OEM Match: Specifically engineered to replace Carrier part number LA680522 and P441-2523 without field modifications.
- Structural Integrity: The 3-blade configuration and 24-degree pitch are computer-balanced to reduce decibel levels and operational fatigue.
- Optimized Airflow: Designed for CCW rotation to pull air through the condenser coils efficiently, preventing compressor overheating.
- Standard Fitment: Features a 1/2-inch hub bore compatible with most standard condenser fan motor shafts.
Common Questions:
How do I confirm the rotation of my existing fan blade?
Rotation is determined by looking at the discharge side (the side air is blowing toward). The LA680522 is a Counter Clock-Wise (CCW) blade. Always verify the motor nameplate rotation before installation.
What is the significance of the 24-degree pitch?
The pitch angle determines the volume of air moved per revolution. Using a blade with an incorrect pitch can overload the condenser motor or lead to insufficient cooling, potentially causing high-pressure switch trips.
Is this a universal replacement part?
While it fits multiple Carrier Bryant Payne models, it is a technical OEM replacement. You must match the 22-inch diameter, 1/2-inch bore, and rotation exactly for the system to operate within design parameters.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
