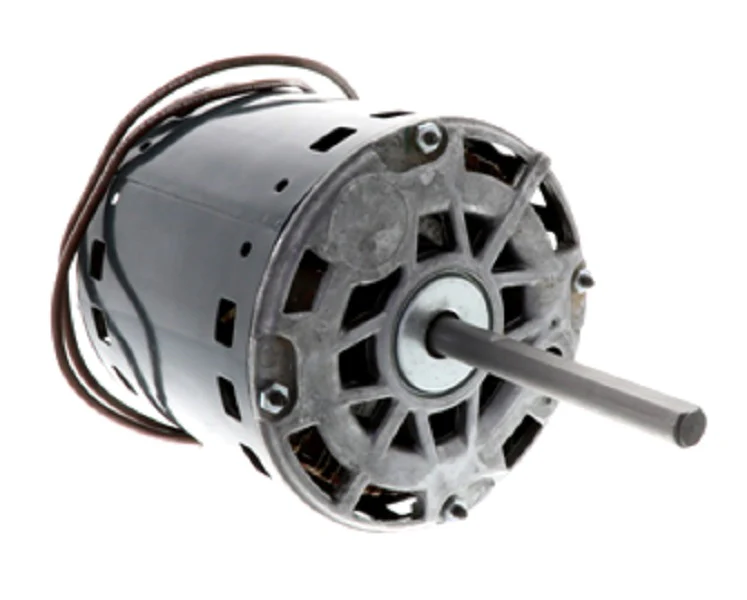

Carrier L06I004 Blower Motor
The Carrier L06I004 Blower Motor is a high-performance 3/4 HP 4-speed direct drive blower motor engineered for heavy-duty residential and light commercial HVAC applications. Operating at 115V with a 1075 RPM rating, this 48-frame motor provides reliable airflow forced through furnaces and air handlers. As a genuine OEM replacement part for Carrier, Bryant, and Payne systems, it features a counterclockwise lead end rotation and a 1/2 inch double-sided flat shaft, ensuring precise compatibility with existing blower wheels. The thermally protected, Class B insulation design and permanent split capacitor (PSC) configuration—requiring a 15 MFD at 370 VAC capacitor—deliver sustained continuous air over (CAO) duty. For contractors looking to restore system static pressure, this 9.70 Amp motor utilizes a rolled steel frame and aluminum flanges for superior heat dissipation. To prevent premature bearing failure, ensure the blower wheel is balanced during installation.
Item is Non Cancelable / Non Returnable
Key Benefits- 4-speed versatility allows for precise CFM adjustment to match heating and cooling load requirements.
- Direct drive design eliminates belt maintenance and optimizes energy transfer to the blower wheel.
- Internal thermal protection prevents winding burnout during over-current or restricted airflow conditions.
- OEM-spec 48-frame construction ensures a direct fit in Carrier HVAC units without bracket modification.
- High-torque 3/4 HP output provides the necessary static pressure for large-tonnage residential air handlers.
What capacitor is required for the L06I004?
This motor requires a 15 MFD / 370 VAC run capacitor (sold separately) for proper startup and operational efficiency.
Will this motor replace generic 48-frame 115V motors?
While the 48-frame and 115V specs are common, this Carrier L06I004 features a specific 4-speed tap and CCWLE rotation; always verify lead length and shaft dimensions before substituting.
How do I determine the correct speed tap for my furnace?
Review the original wiring schematic; typically, the Carrier L06I004 uses designated color-coded leads for High (Cooling), Medium-High, Medium-Low, and Low (Heating) speeds.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
