Carrier KSACN0601AAA Kit
The Carrier KSACN0601AAA Kit is a professional-grade 7-day programmable wired remote controller designed specifically for Carrier and Bryant ductless systems, including high wall and console indoor units. Engineered for reliability, this wired control kit utilizes a 4-wire quick connect interface to establish stable communication between the controller and the indoor unit, bypassing the limitations of standard infrared remotes. It features a high-contrast backlight LCD display that provides real-time monitoring of room temperature, operating modes, and troubleshooting error codes for rapid system diagnostics.
A veteren technician's choice for precision climate management, the KSACN0601AAA incorporates Follow Me technology, which shifts temperature sensing from the indoor unit's return air thermistor directly to the wall-mounted controller. This ensures optimal comfort by regulating the system based on the actual conditions at the user's level. The unit supports operation mode locking (Heating Only, Cooling Only, or No Auto Mode) and set temperature range limits, making it ideal for commercial applications or rental properties where energy conservation and equipment protection are horizontal priorities. Its power-off memory ensures that all user-defined schedules and settings are retained during voltage fluctuations or power outages.
Key Benefits for the Contractor:- Advanced Diagnostics: Built-in troubleshooting error code display allows for faster service calls and accurate fault identification.
- Enhanced Precision: Follow Me default sensing provides superior temperature regulation by measuring the space at the controller location.
- Application Flexibility: Features mode locking and child lock functions to prevent unauthorized setting changes in public or high-traffic areas.

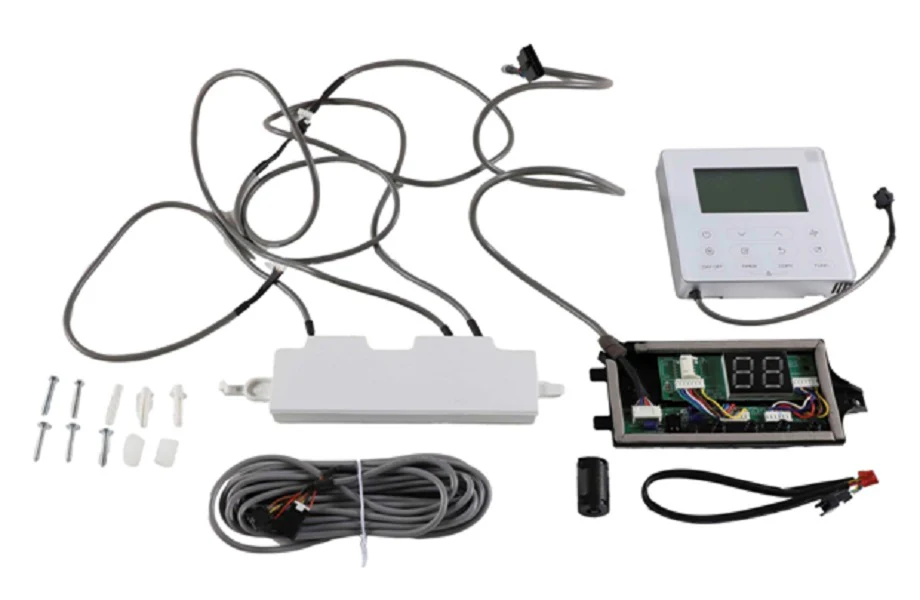

- Simplified Installation: The kit includes a 19-foot extension cable and hardware for immediate wall-mounted thermostat integration.
- Superior Scheduling: Full 7-day programmable functionality with multiple daily events to maximize system efficiency.
Is the KSACN0601AAA compatible with all Carrier ductless units?
This specific model is primarily designed for size 12 high wall and console units (such as the 40MPHA or 40MAQ series). For cassettes or larger ducted indoor units (sizes 18-58), the KSACN0701AAA is typically the required variant.
Does this controller work with multi-zone systems?
Yes, but while it supports individual zone control, using Auto Mode is generally not recommended for multi-zone configurations to avoid potential mode conflicts between different indoor units.
What wiring is required for installation?
The controller operates on a low-voltage 5-12 VDC circuit. It utilizes a 4-wire connectivity scheme. It is critical to use the provided shielded wire and ensure it is properly grounded to avoid communication "noise" or interference.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
